Zyxel V301-T1 [172/240] Windows xp nt 2000

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

172

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also

apply to Windows 2000 and Windows NT.

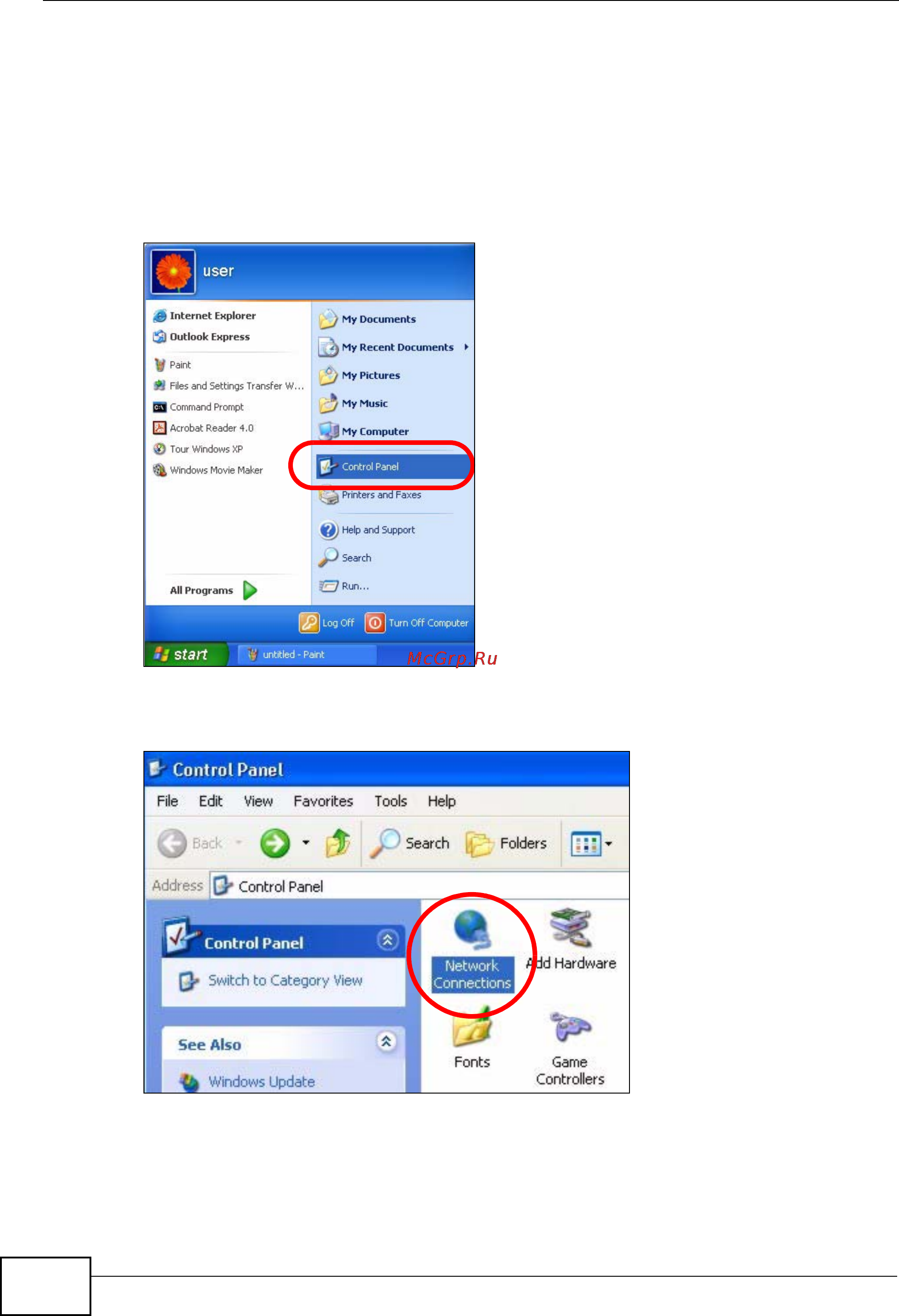

1 Click Start > Control Panel.

Figure 121 Windows XP: Start Menu

2 In the Control Panel, click the Network Connections icon.

Figure 122 Windows XP: Control Panel
