Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

189

1 Click System > Administration > Network.

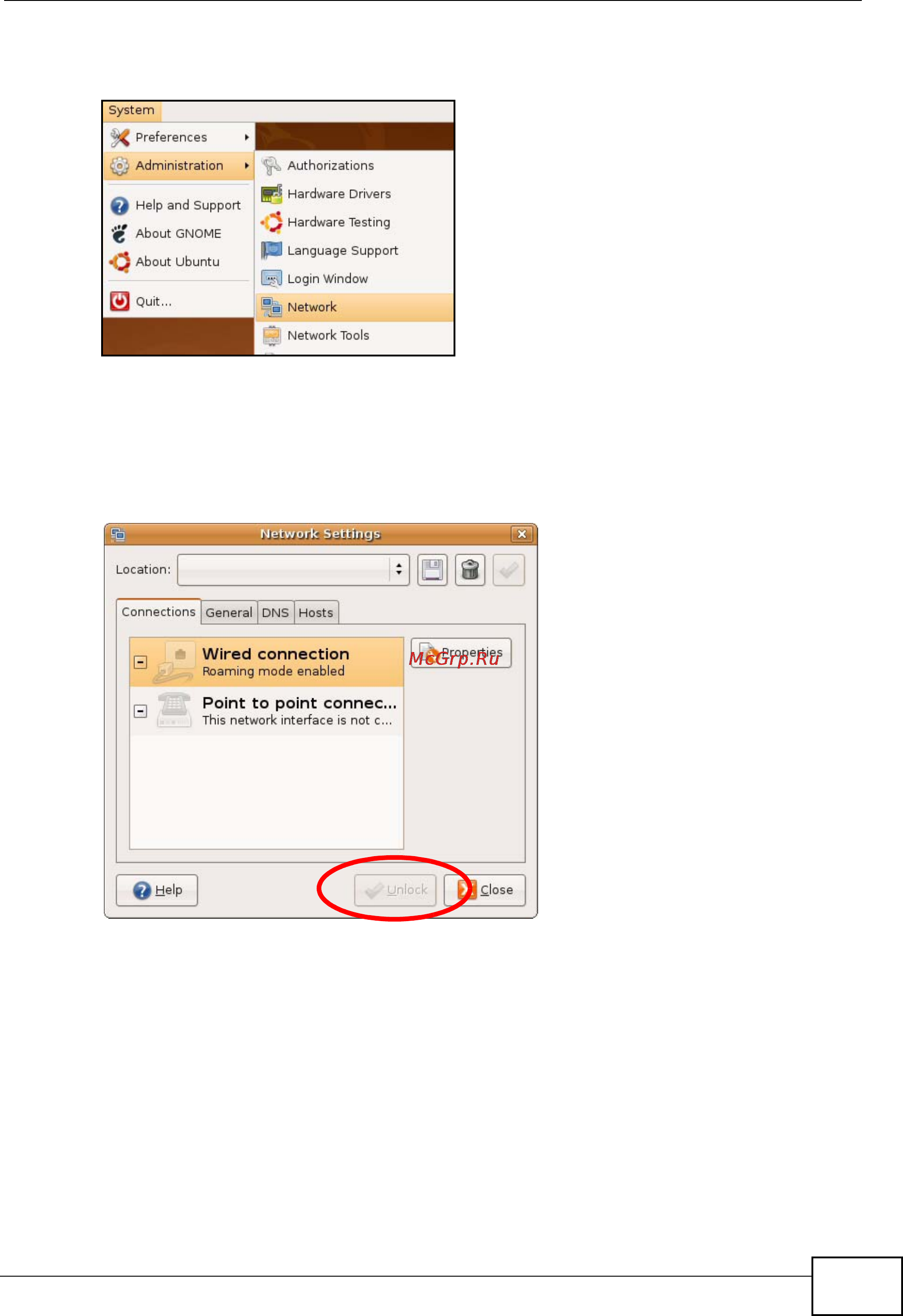

Figure 144 Ubuntu 8: System > Administration Menu

2 When the Network Settings window opens, click Unlock to open the

Authenticate window. (By default, the Unlock button is greyed out until clicked.)

You cannot make changes to your configuration unless you first enter your admin

password.

Figure 145 Ubuntu 8: Network Settings > Connections
