Appendix C Pop-up Windows, JavaScripts and Java Permissions

V300 Series User’s Guide

202

1 In Internet Explorer, select Tools, Internet Options, Privacy.

2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen.

This disables any web pop-up blockers you may have enabled.

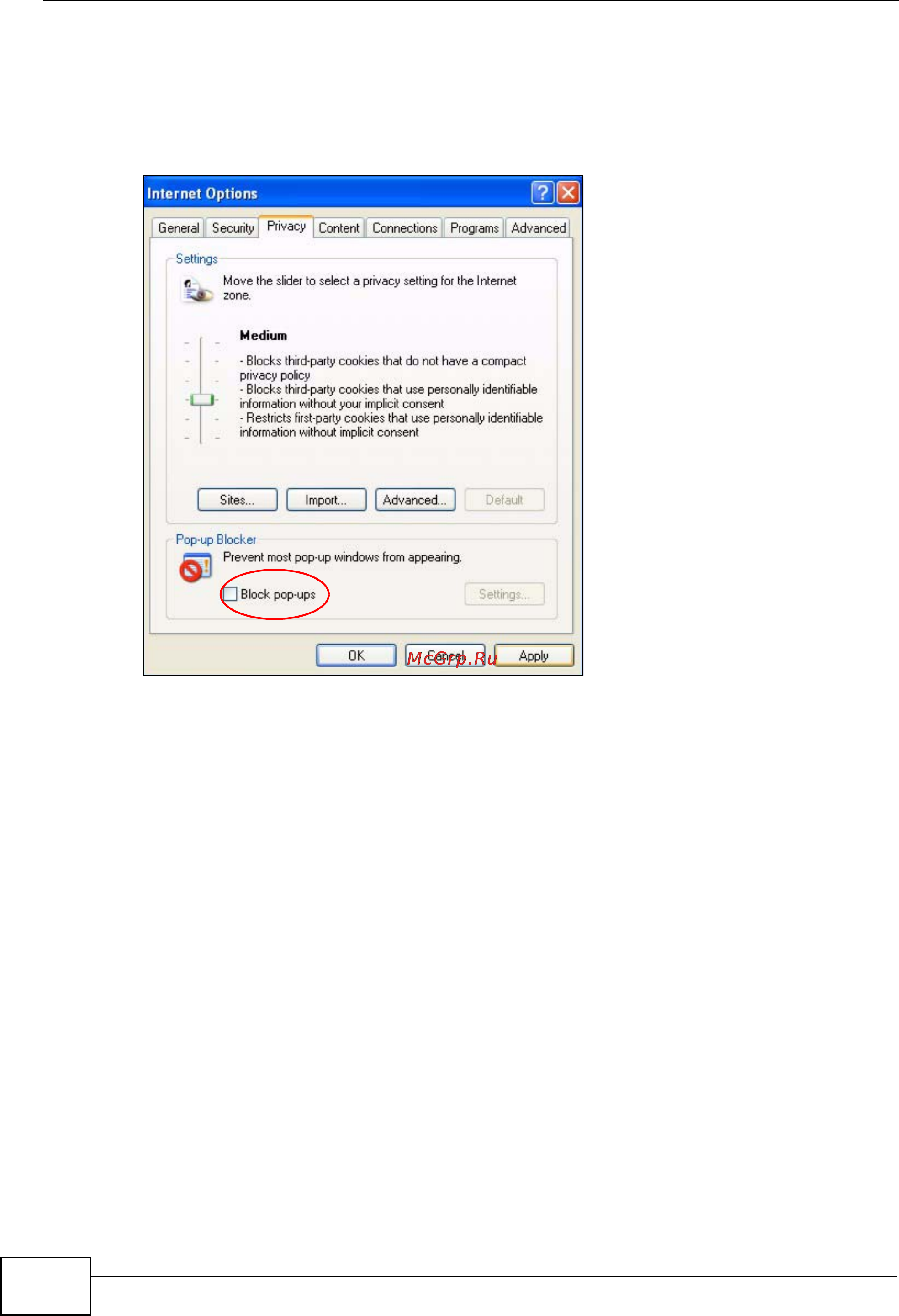

Figure 160 Internet Options: Privacy

3 Click Apply to save this setting.

Enable pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the

following steps.

1 In Internet Explorer, select Tools, Internet Options and then the Privacy tab.
