V300 Series User’s Guide

CHAPTER 7

The Web Configurator

7.1 Overview

This chapter describes how to access the V300’s web configurator and provides an

overview of its screens.

7.2 Accessing the Web Configurator

1 Make sure your hardware is properly connected and prepare your computer or

computer network to connect to the V300 (refer to the Quick Start Guide).

2 Launch your web browser.

3 Enter the V300’s IP address as the URL. The V300 is set to get an IP address

automatically. Use the System Info > IP Address LCD screen to find it out (see

Section 5.5 on page 55).

Note: If the V300 is not connected to a network, use the management IP address. The

default management IP address is 192.168.5.1.

The following screen displays.

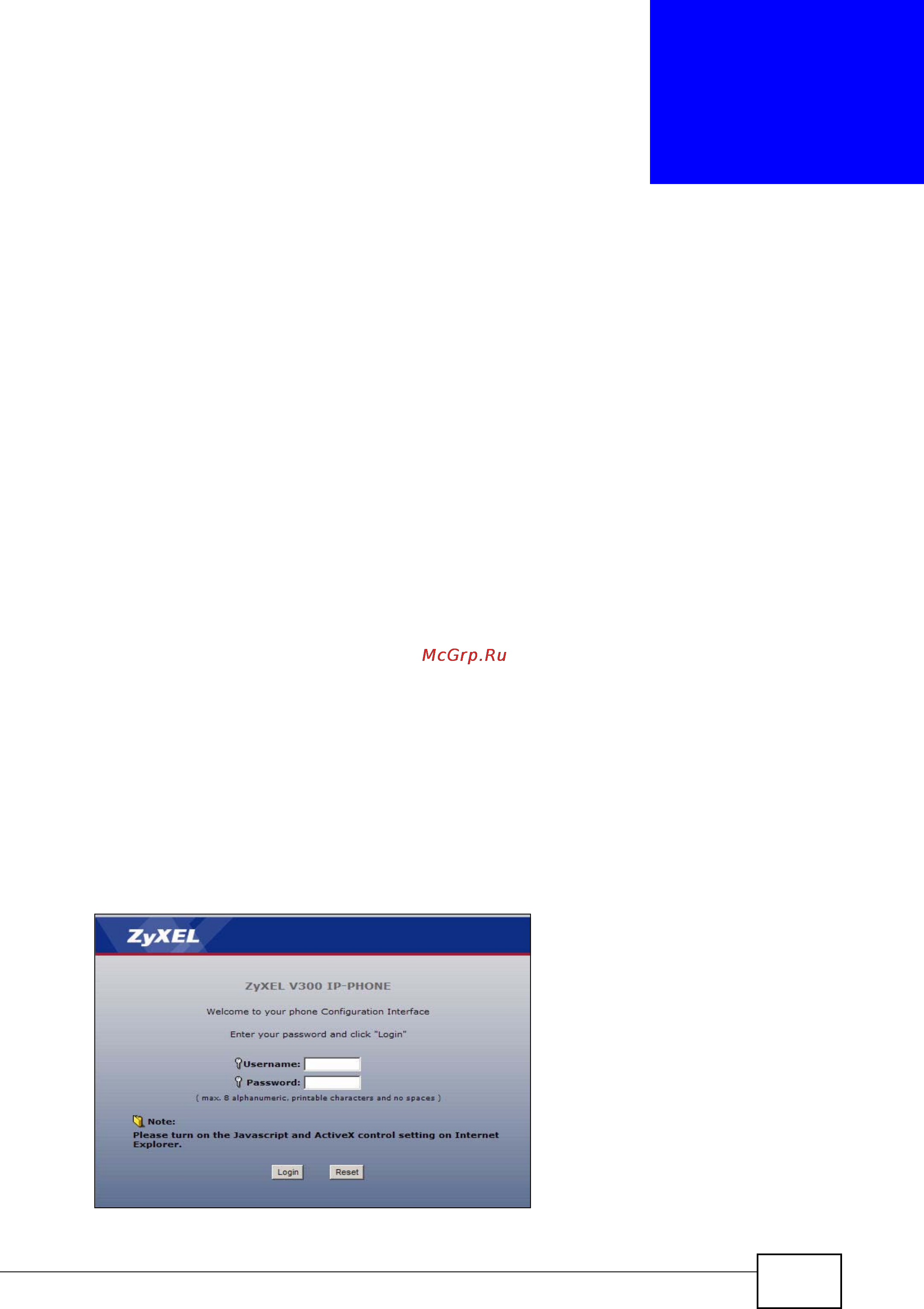

Figure 76 Password Screen
