Chapter 12 The Phone Book

V300 Series User’s Guide

135

12.6 DND White List Screen

Use this screen to see and edit details of people who can make incoming calls to

the V300 even when you have DND (Do Not Disturb) turned on.

Click VoIP > Phone Book > DND White List. The following screen displays.

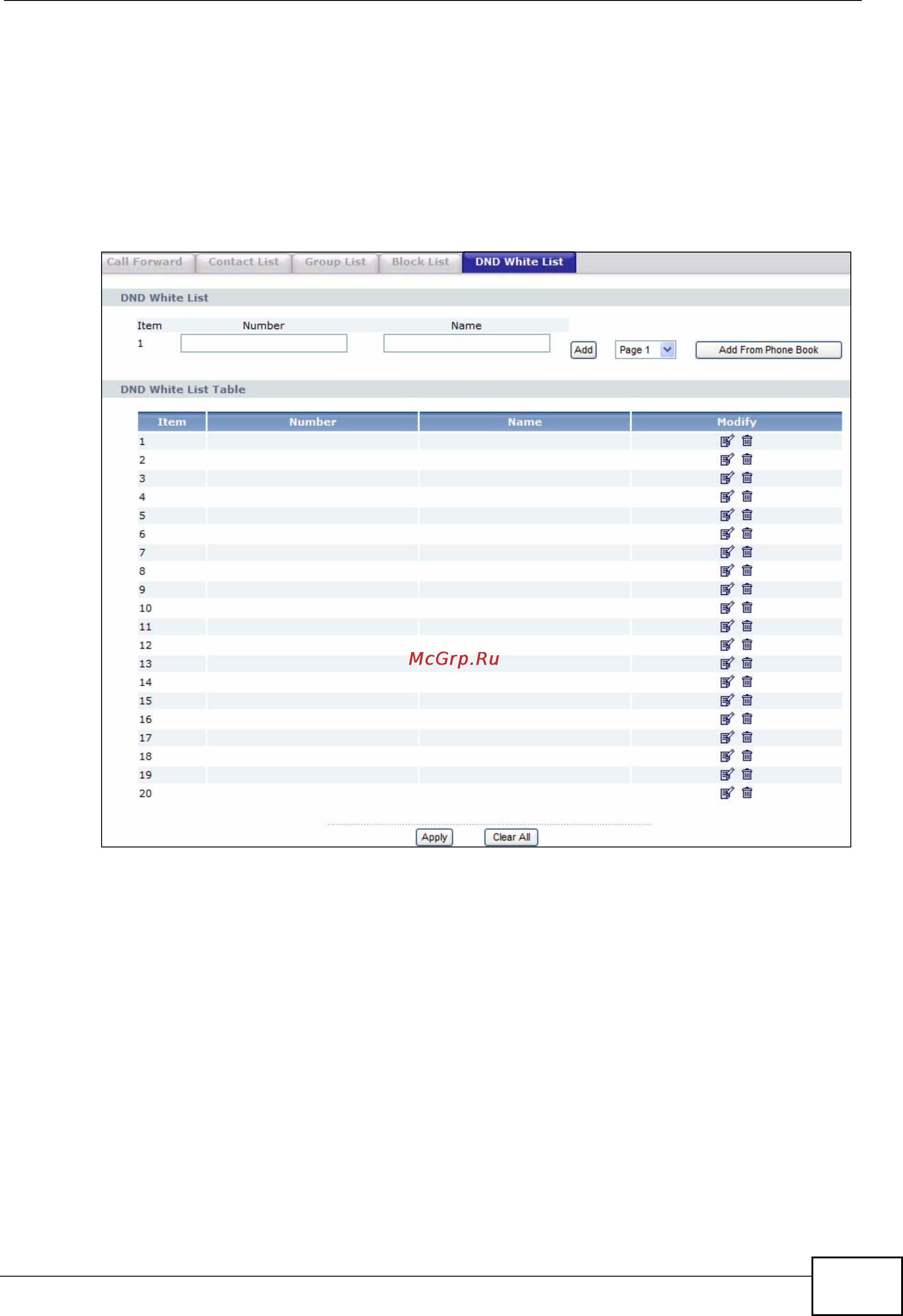

Figure 100 VoIP > Phone Book > DND White List
