Chapter 13 System
V300 Series User’s Guide
144
13.6 Clock Alarm Setting
Click Maintenance > System > Clock Alarm Setting. The screen appears as
shown. Use this screen to configure the V300’s clock alarm schedule.
Note: The three alarms must have different configurations. You cannot have two or
three identical alarms.

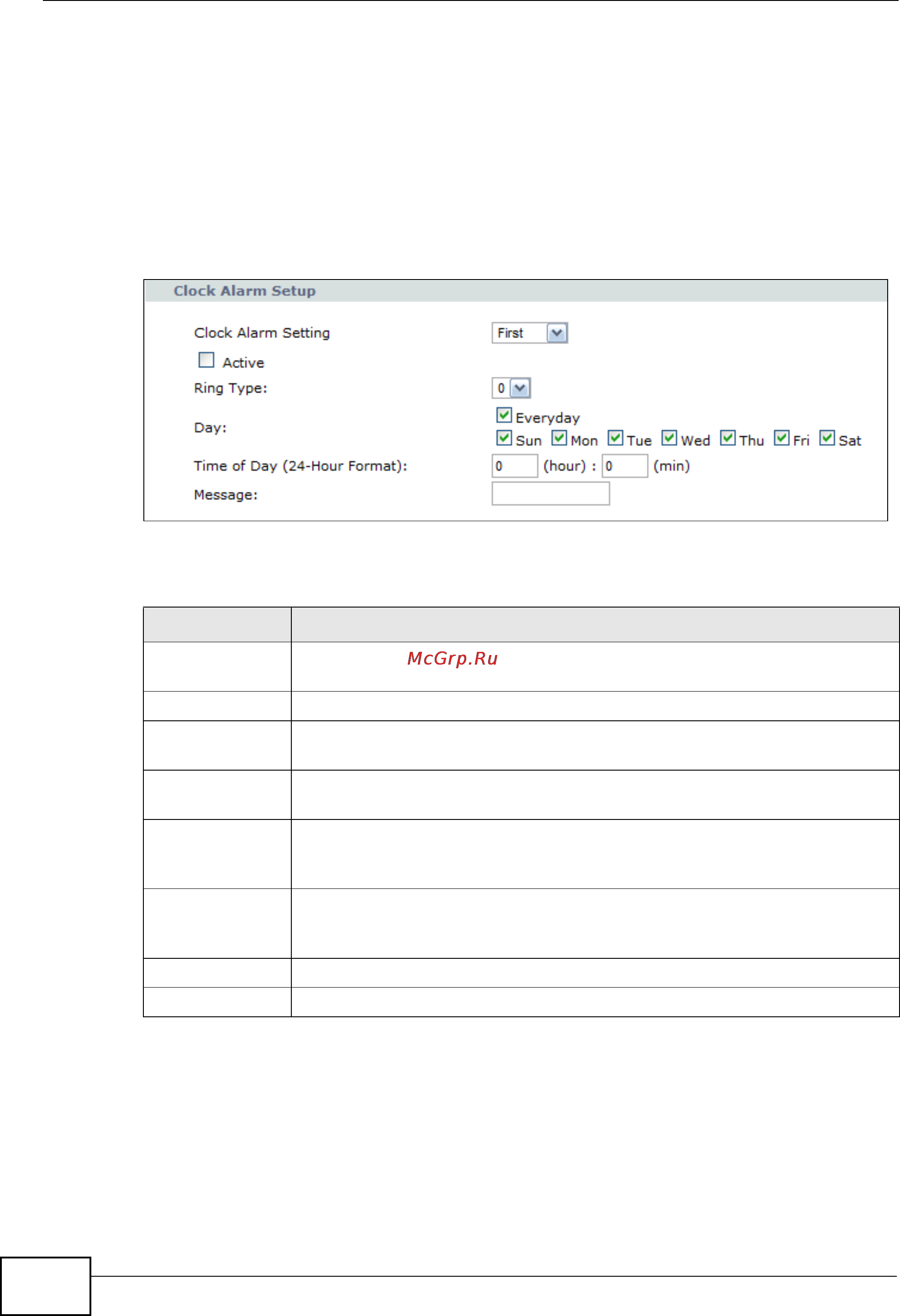

Figure 104 Maintenance > System > Clock Alarm Setting
The following table describes the labels in this screen.
Table 42 Maintenance > System > Clock Alarm Setting
LABEL DESCRIPTION
Clock Alarm
Setting
Select one of three available clock alarms to configure.
Active Check this to enable the currently selected clock alarm.
Ring Type Choose a ring type for the currently selected clock alarm. There are 12
available clock alarm ring types.
Day Choose a day (or number of days) on which the clock alarm will be
triggered.
Time of Day
(24-Hour
Format)
Enter the time of day for the clock alarm to be triggered.
Message Enter the text message that appears on screen when the clock alarm is
triggered. You can enter up to 14 alphanumeric characters (a-z, A-Z, 0-
9) and spaces are not allowed.
Apply Click this to save your changes.
Reset
Click this to set every field in this screen to its last-saved value.
