Zyxel V301-T1 [197/240] Figure 155 opensuse 10 network card setup

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

197

5 When the Network Card Setup window opens, click the Address tab

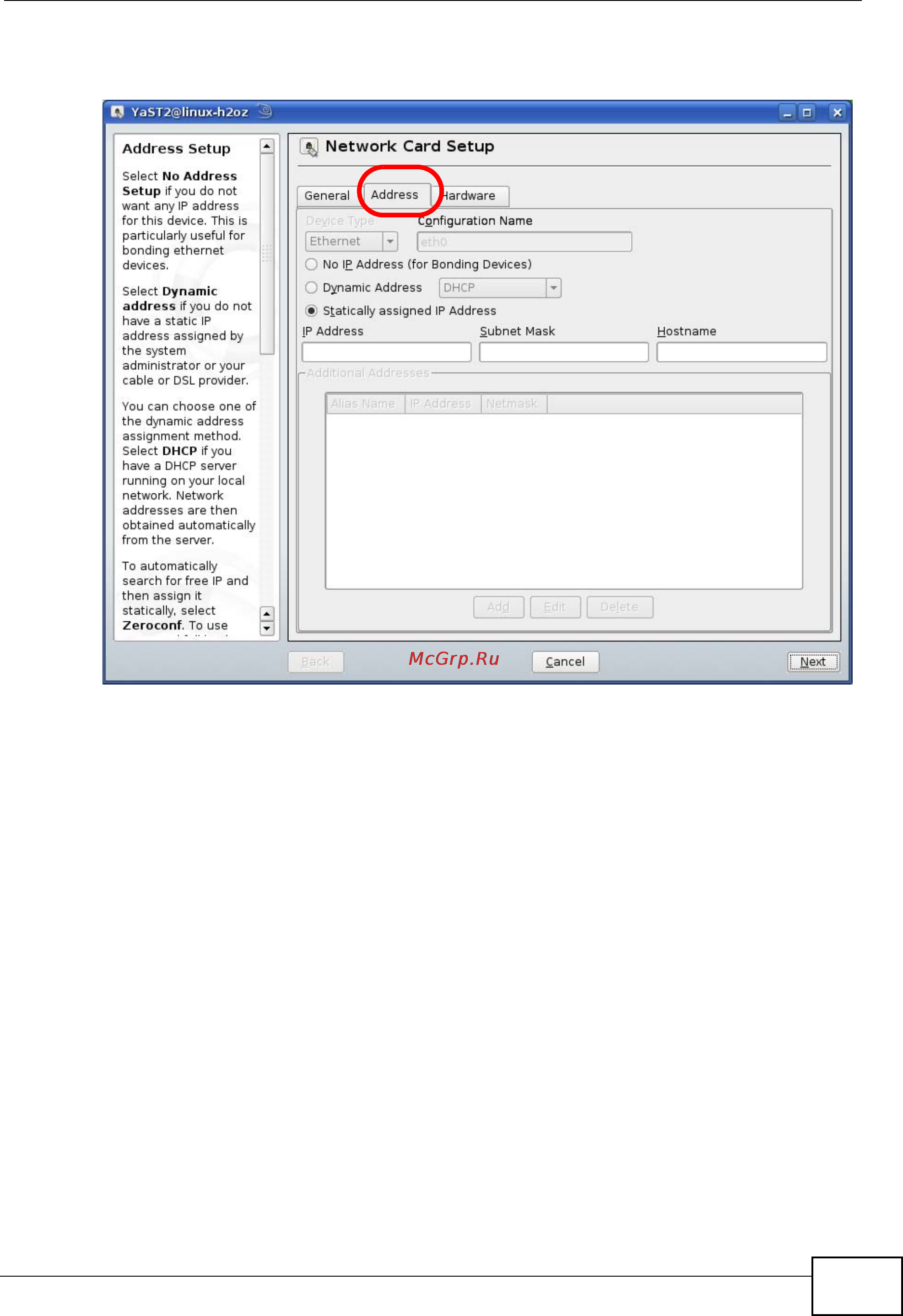

Figure 155 openSUSE 10.3: Network Card Setup

6 Select Dynamic Address (DHCP) if you have a dynamic IP address.

Select Statically assigned IP Address if you have a static IP address. Fill in the

IP address, Subnet mask, and Hostname fields.

7 Click Next to save the changes and close the Network Card Setup window.
