Chapter 13 System
V300 Series User’s Guide
140
13.4 Time Setting Screen
To change your V300’s time and date, click Maintenance > System > Time
Setting. The screen appears as shown. Use this screen to configure the V300’s
time based on your local time zone.

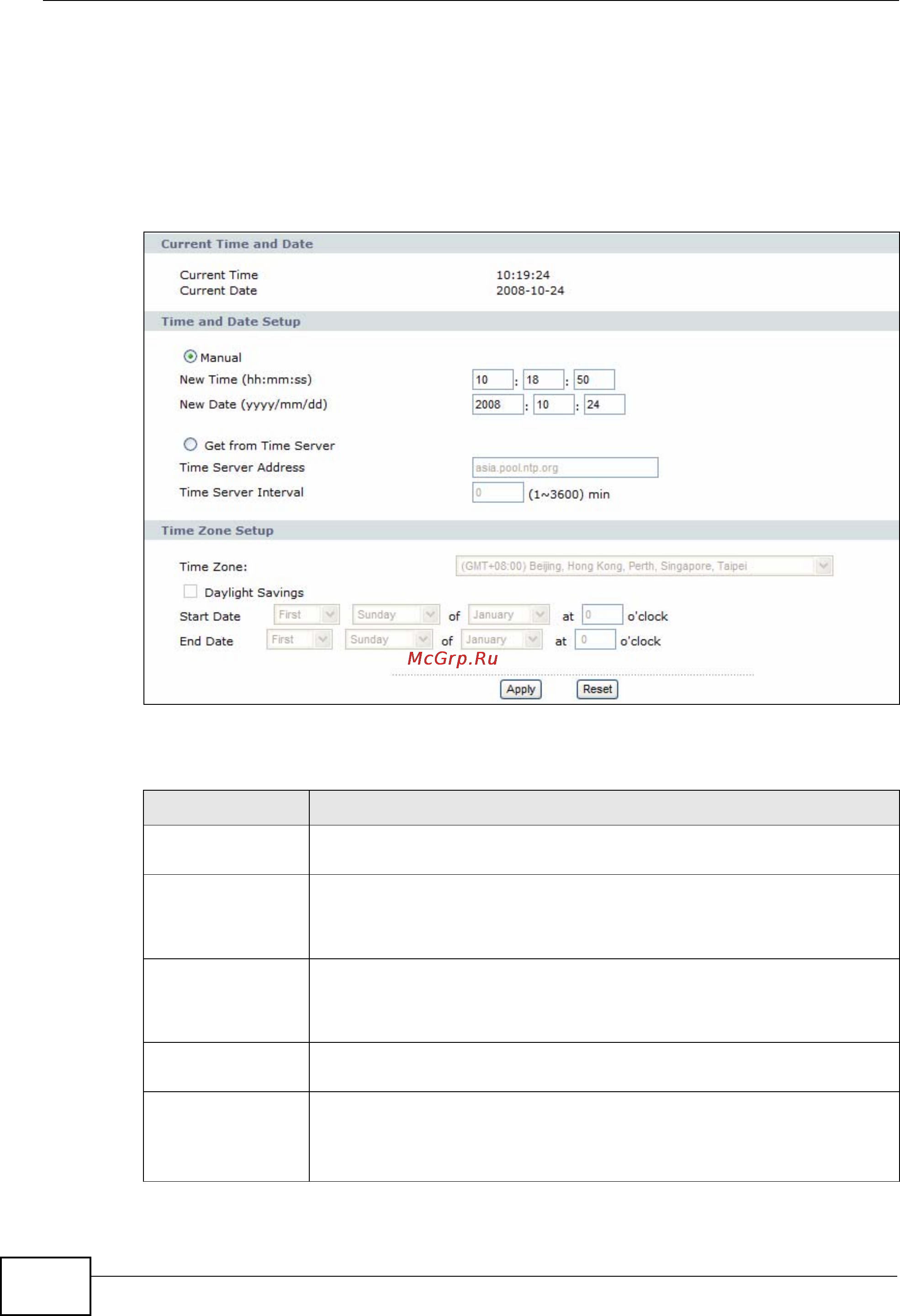

Figure 102 Maintenance > Time Setting
The following table describes the labels in this screen.
Table 40 Maintenance > Time Setting
LABEL DESCRIPTION
Current Time and
Date
Current Time This field displays the time of your V300.
Each time you reload this page, the V300 synchronizes the time with
the time server.
Current Date This field displays the date of your V300.
Each time you reload this page, the V300 synchronizes the date with
the time server.
Time and Date
Setup
Manual Select this to enter the time and date manually. If you configure a
new time and date, Time Zone and Daylight Saving at the same time,
the new time and date you entered has priority and the Time Zone
and Daylight Saving settings do not affect it.
