Zyxel V301-T1 [182/240] Figure 135 mac os x 10 network preferences

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

182

3 When the Network preferences pane opens, select Built-in Ethernet from the

network connection type list, and then click Configure.

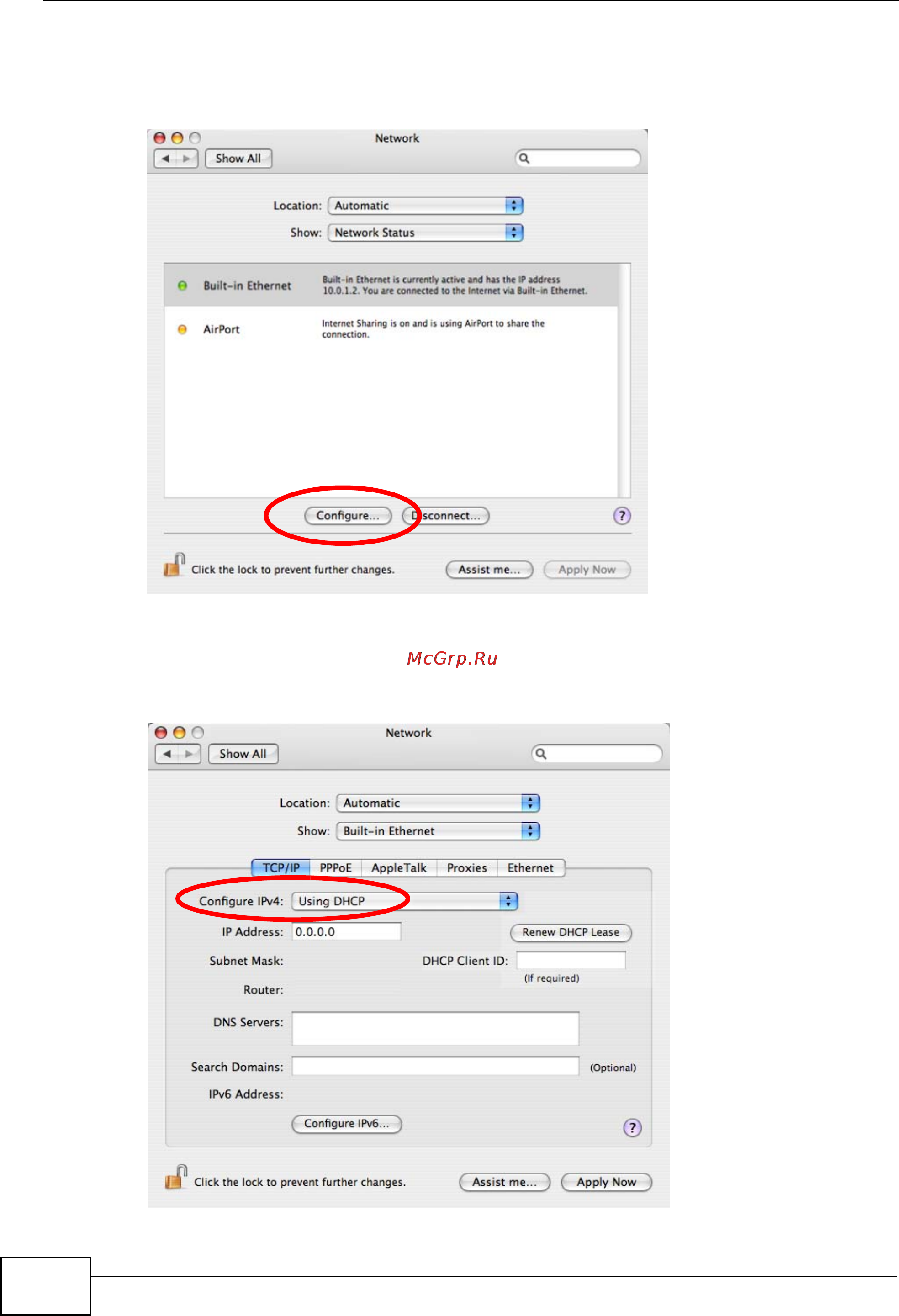

Figure 135 Mac OS X 10.4: Network Preferences

4 For dynamically assigned settings, select Using DHCP from the Configure IPv4

list in the TCP/IP tab.

Figure 136 Mac OS X 10.4: Network Preferences > TCP/IP Tab.
