Chapter 11 Phone Setup
V300 Series User’s Guide
120
11.3 Phone Settings Screen
Use this screen to configure basic phone settings like volume levels.
Click VoIP > Phone > Phone Settings. The following screen displays.

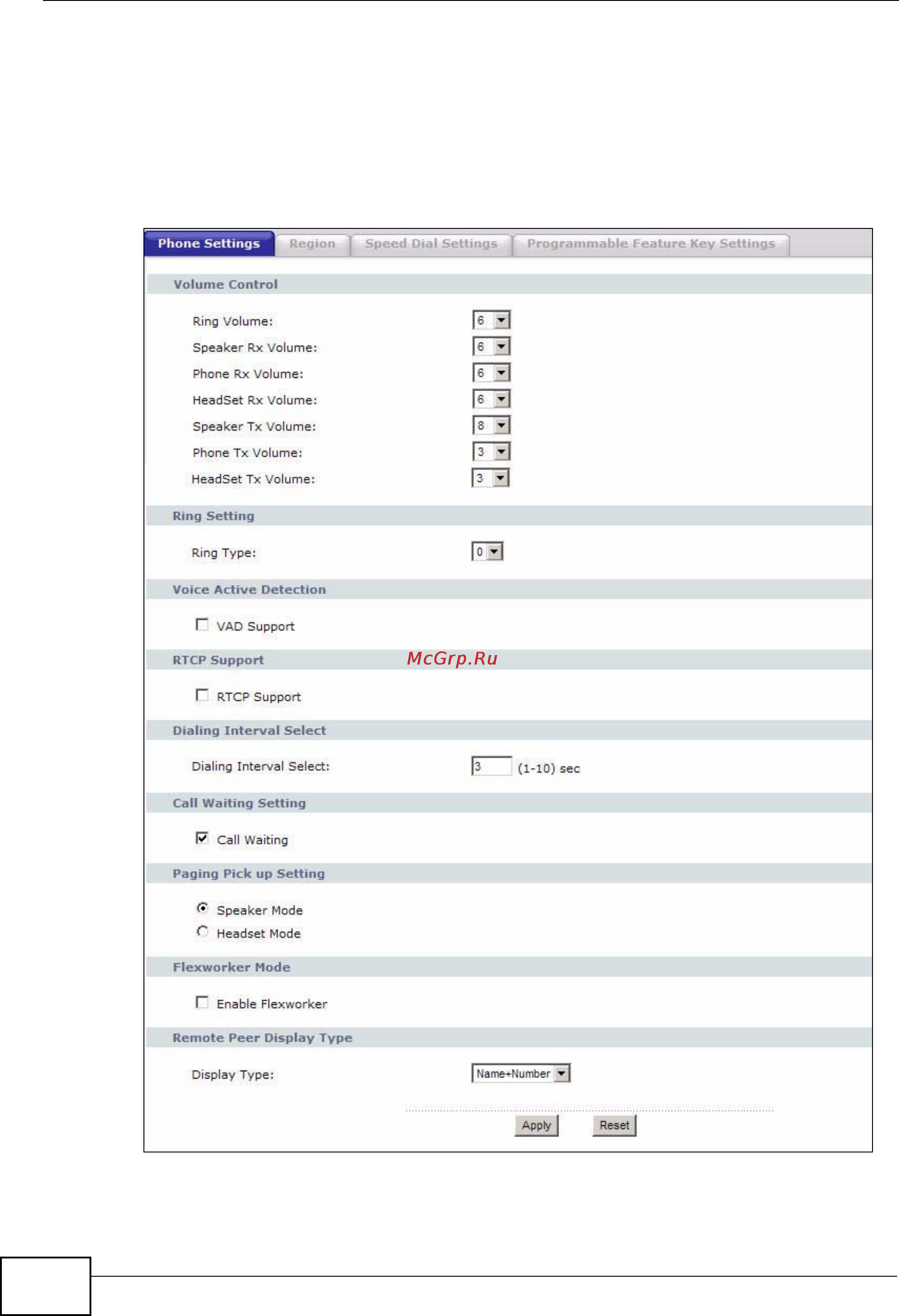

Figure 92 VoIP > Phone > Phone Settings
