Zyxel V301-T1 [203/240] Figure 161 internet options privacy

Appendix C Pop-up Windows, JavaScripts and Java Permissions

V300 Series User’s Guide

203

2 Select Settings…to open the Pop-up Blocker Settings screen.

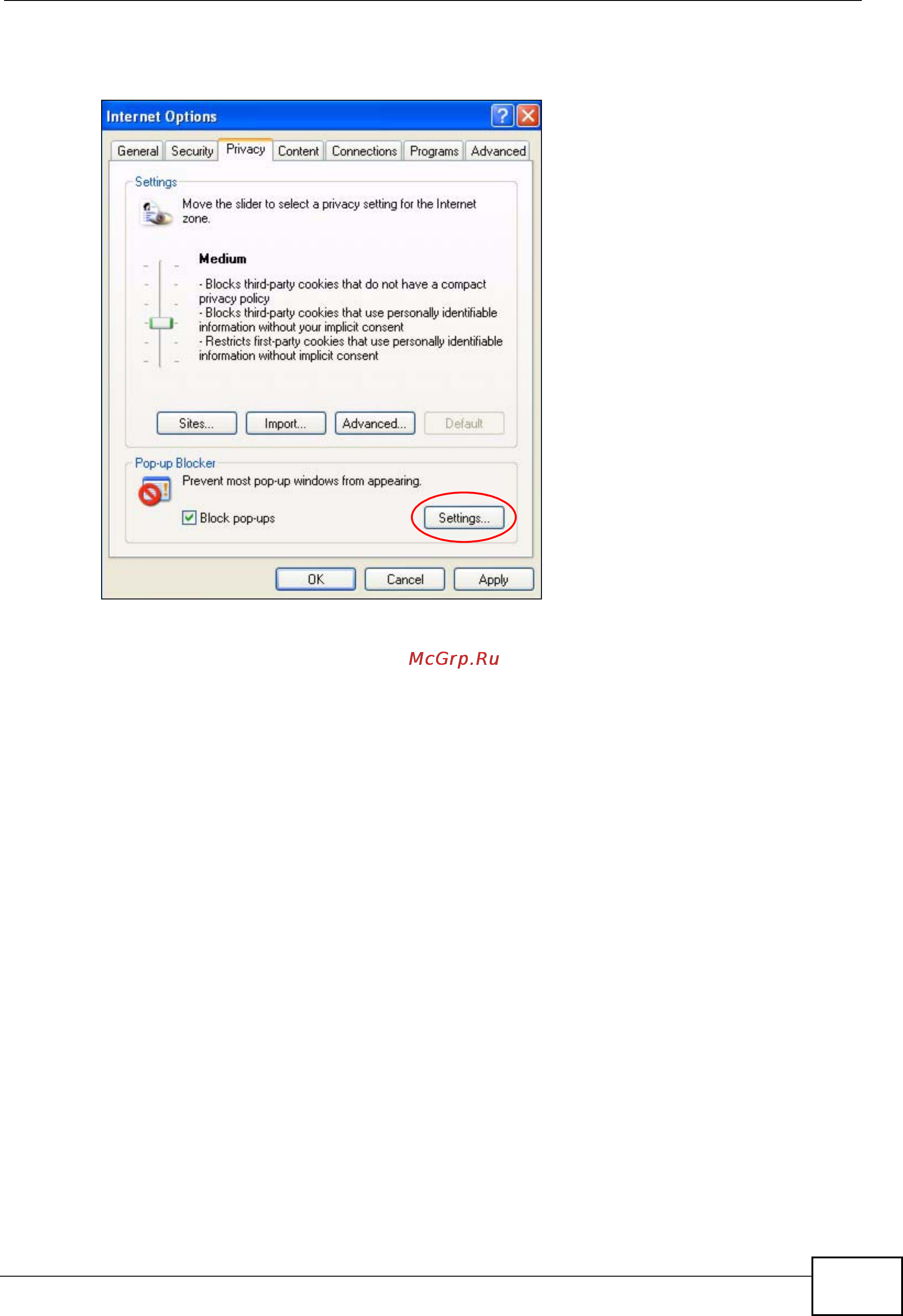

Figure 161 Internet Options: Privacy

3 Type the IP address of your device (the web page that you do not want to have

blocked) with the prefix “http://”. For example, http://192.168.167.1.
