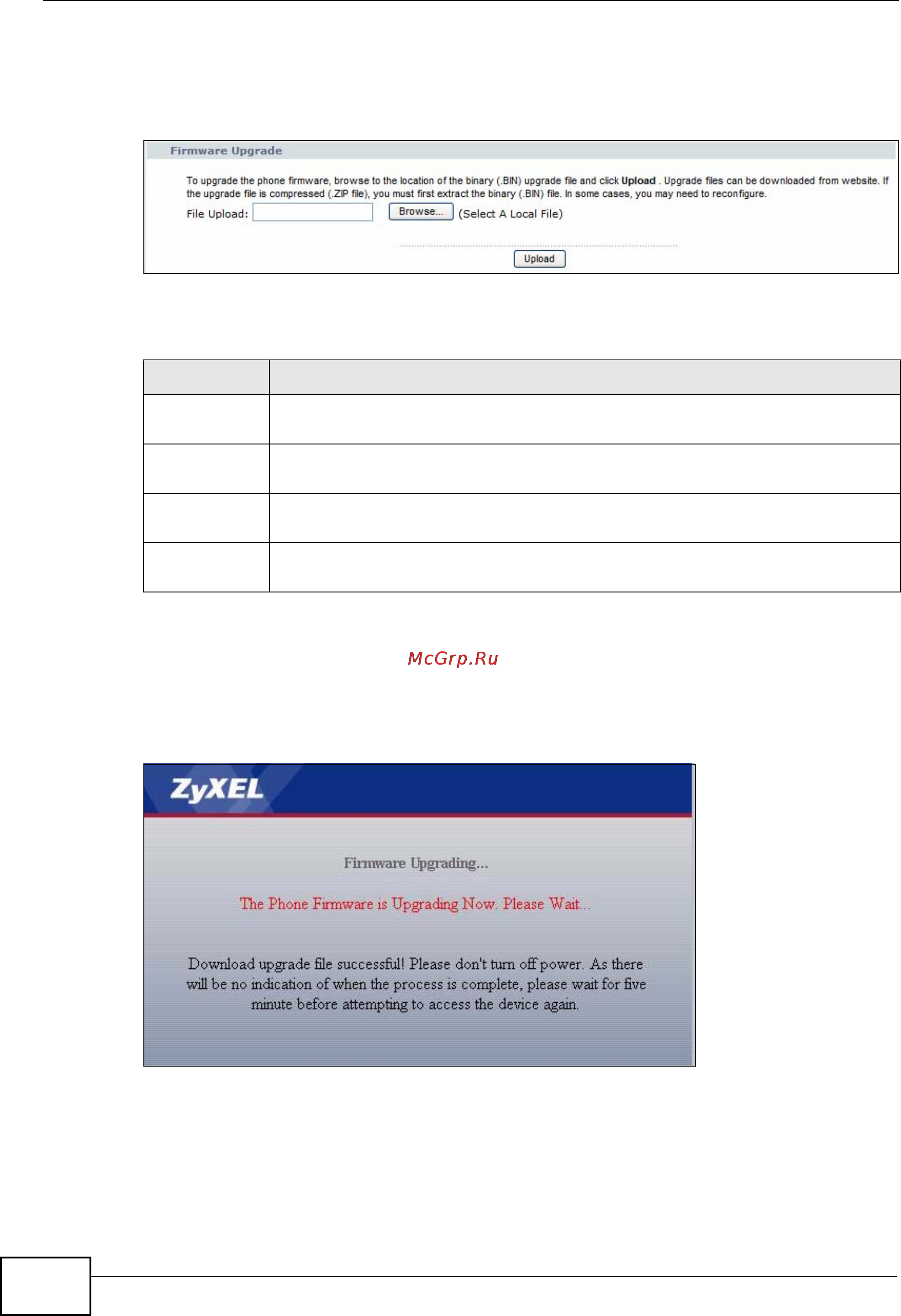

Chapter 15 Tools
V300 Series User’s Guide
148
Click Maintenance > Tools. Follow the instructions in this screen to upload
firmware to your V300.
Figure 107 Maintenance > Tools > Firmware Upload
The following table describes the labels in this screen.
Note: Do not turn off the V300 while firmware upload is in progress!
After you see the Firmware Upload In Process screen, wait two minutes before
logging into the V300 again.
Figure 108 Upload Warning
Table 45 Maintenance > Tools > Firmware Upload
LABEL DESCRIPTION
Firmware
Upgrade
File
Upload
Type in the location of the file you want to upload in this field or click
Browse... to find it.
Browse... Click Browse... to find the .bin file you want to upload. Remember that
you must decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to
two minutes.
