Zyxel V301-T1 [190/240] Figure 146 ubuntu 8 administrator account authentication

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

190

3 In the Authenticate window, enter your admin account name and password then

click the Authenticate button.

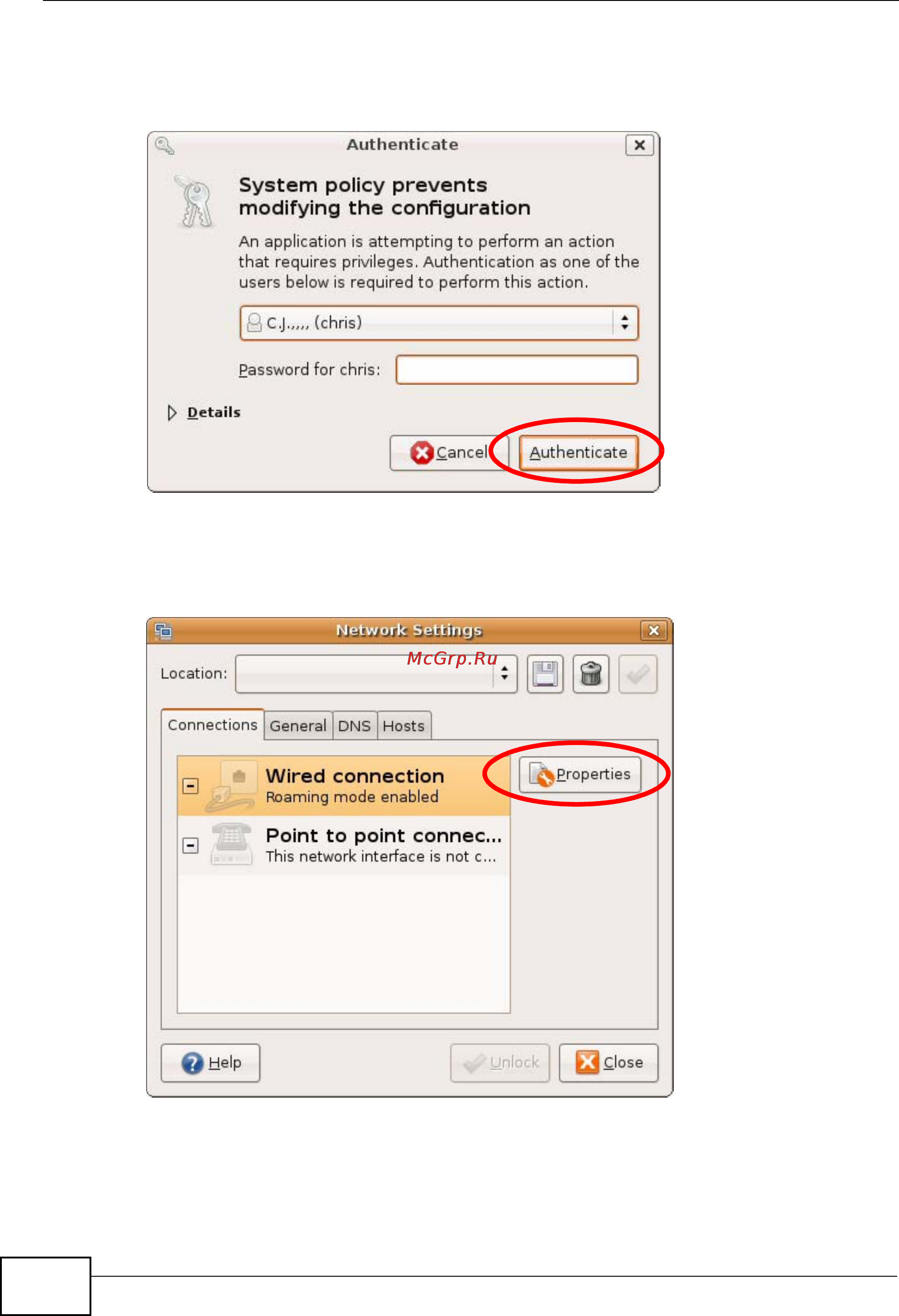

Figure 146 Ubuntu 8: Administrator Account Authentication

4 In the Network Settings window, select the connection that you want to

configure, then click Properties.

Figure 147 Ubuntu 8: Network Settings > Connections
