Chapter 13 System
V300 Series User’s Guide
143
Click Maintenance > System > Dynamic DNS. The screen appears as shown.
Use this screen to change your V300’s DDNS settings.

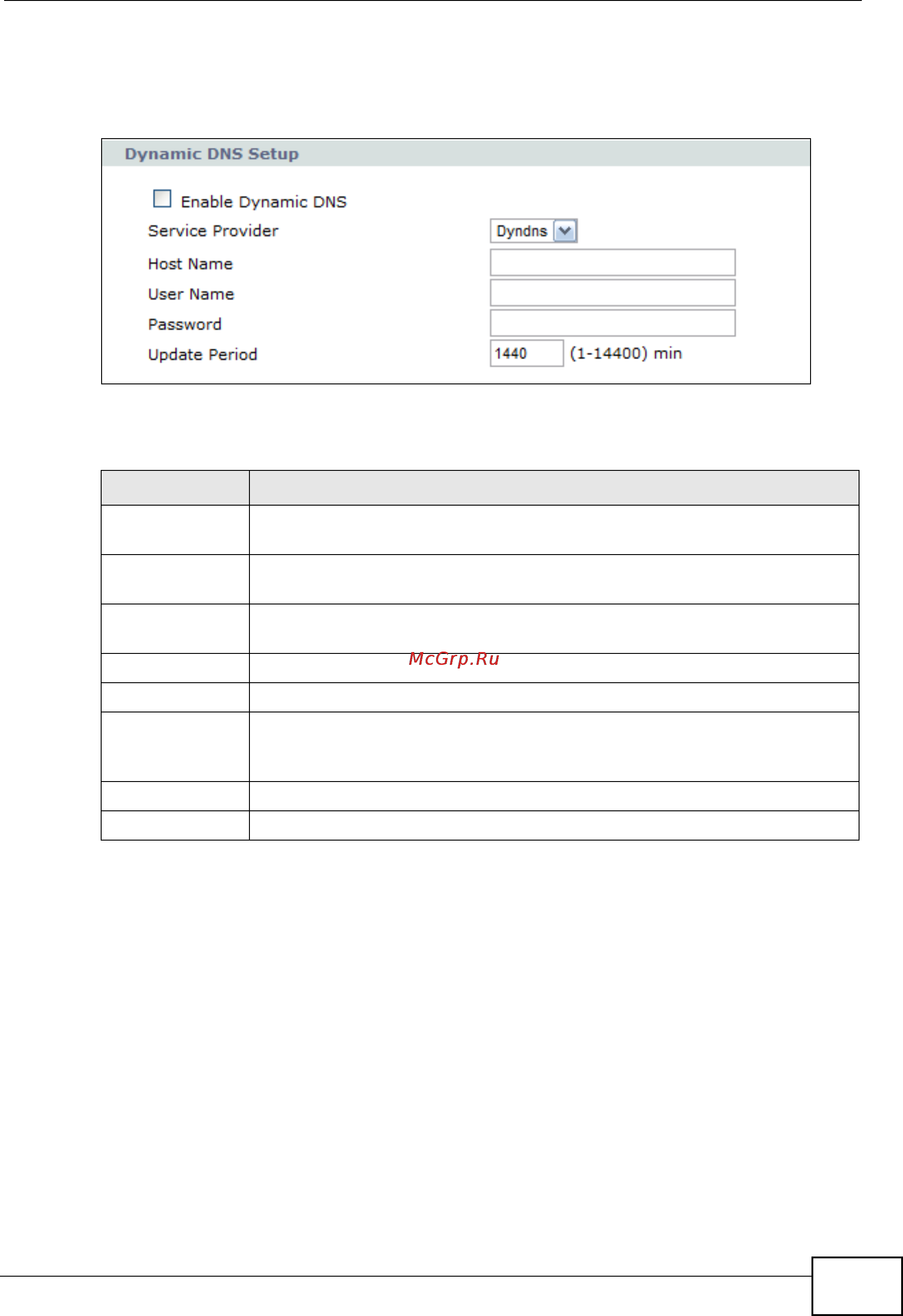

Figure 103 Maintenance > DDNS
The following table describes the labels in this screen.
Table 41 Maintenance > System > DDNS
LABEL DESCRIPTION
Enable Dynamic
DNS
Select this to allow the V300 to use DDNS.
Service
Provider
Select the type of service that you are registered for with your Dynamic
DNS service provider.
Host name Type the host name assigned to your V300 by your Dynamic DNS
provider.
User Name Type your user name.
Password Type the password assigned to you.
Update Period Enter the number of minutes that pass before the V300 checks to see
whether the public IP address on the DDNS matches the device’s
current IP address. If not, the V300 updates itself.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its last-saved value.
