Zyxel V301-T1 [173/240] Properties

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

173

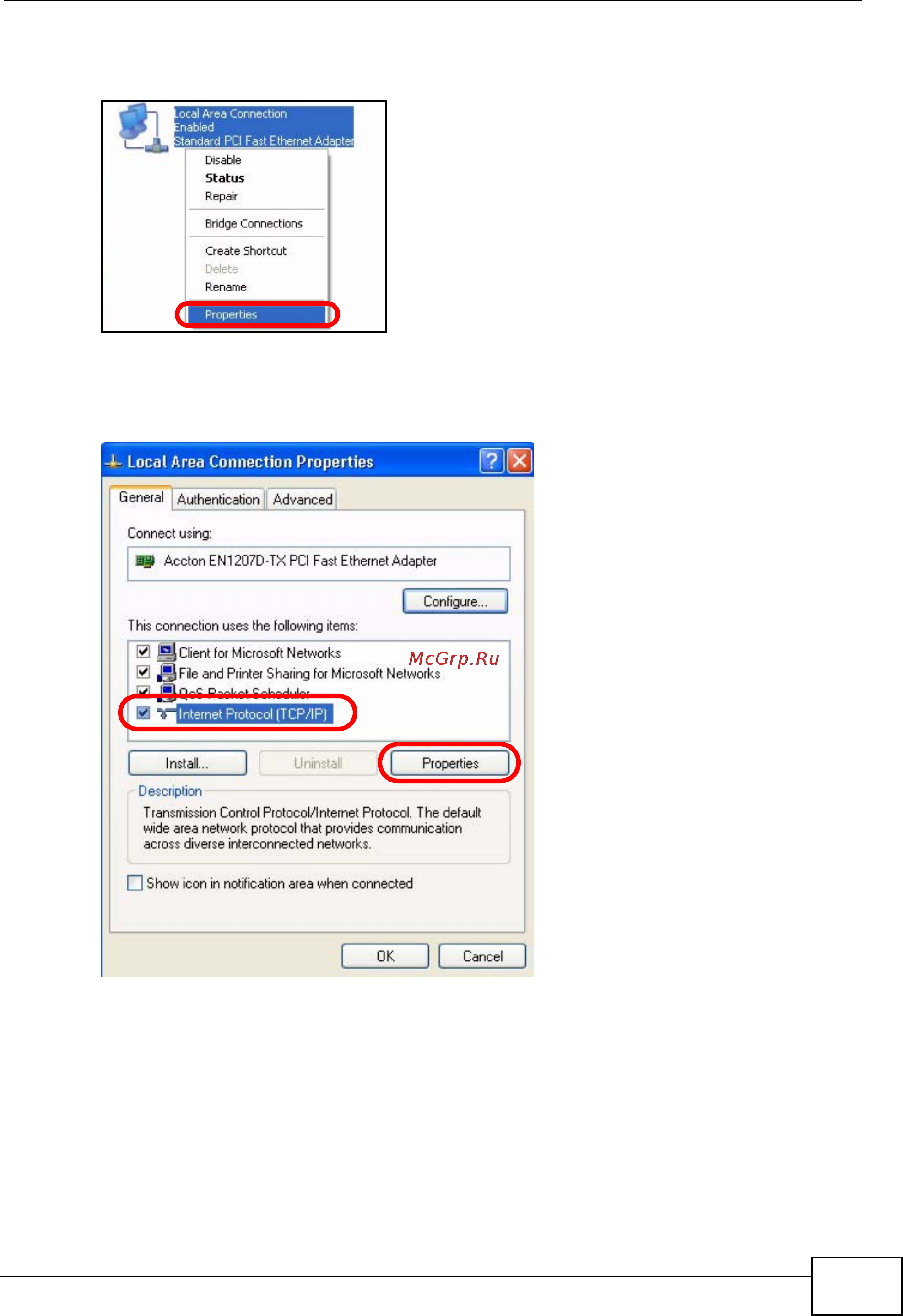

3 Right-click Local Area Connection and then select Properties.

Figure 123 Windows XP: Control Panel > Network Connections > Properties

4 On the General tab, select Internet Protocol (TCP/IP) and then click

Properties.

Figure 124 Windows XP: Local Area Connection Properties
