Zyxel V301-T1 [199/240] Verifying settings

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

199

Verifying Settings

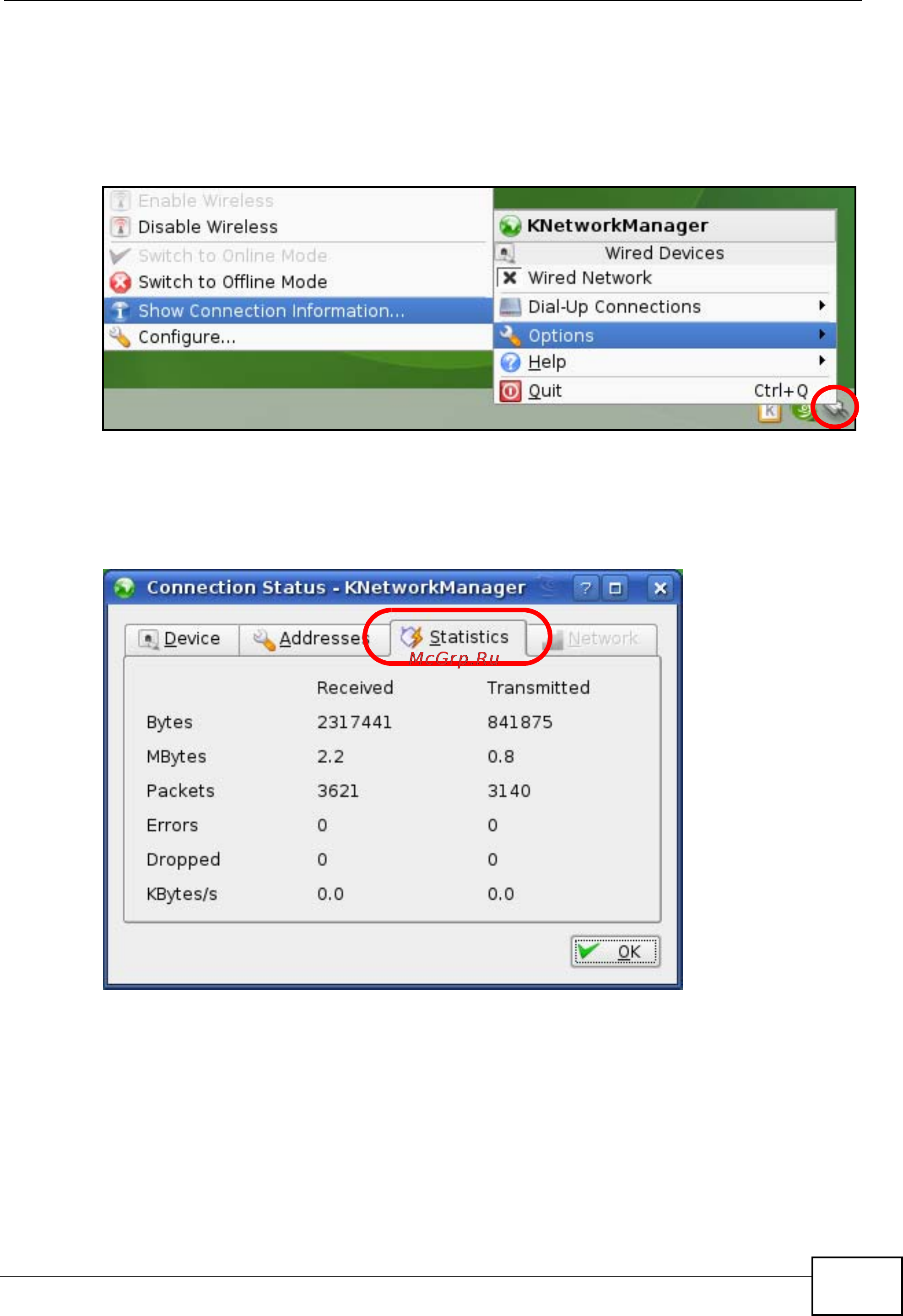

Click the KNetwork Manager icon on the Task bar to check your TCP/IP

properties. From the Options sub-menu, select Show Connection Information.

Figure 157 openSUSE 10.3: KNetwork Manager

When the Connection Status - KNetwork Manager window opens, click the

Statistics tab to see if your connection is working properly.

Figure 158 openSUSE: Connection Status - KNetwork Manager
