Chapter 2 Hardware

V300 Series User’s Guide

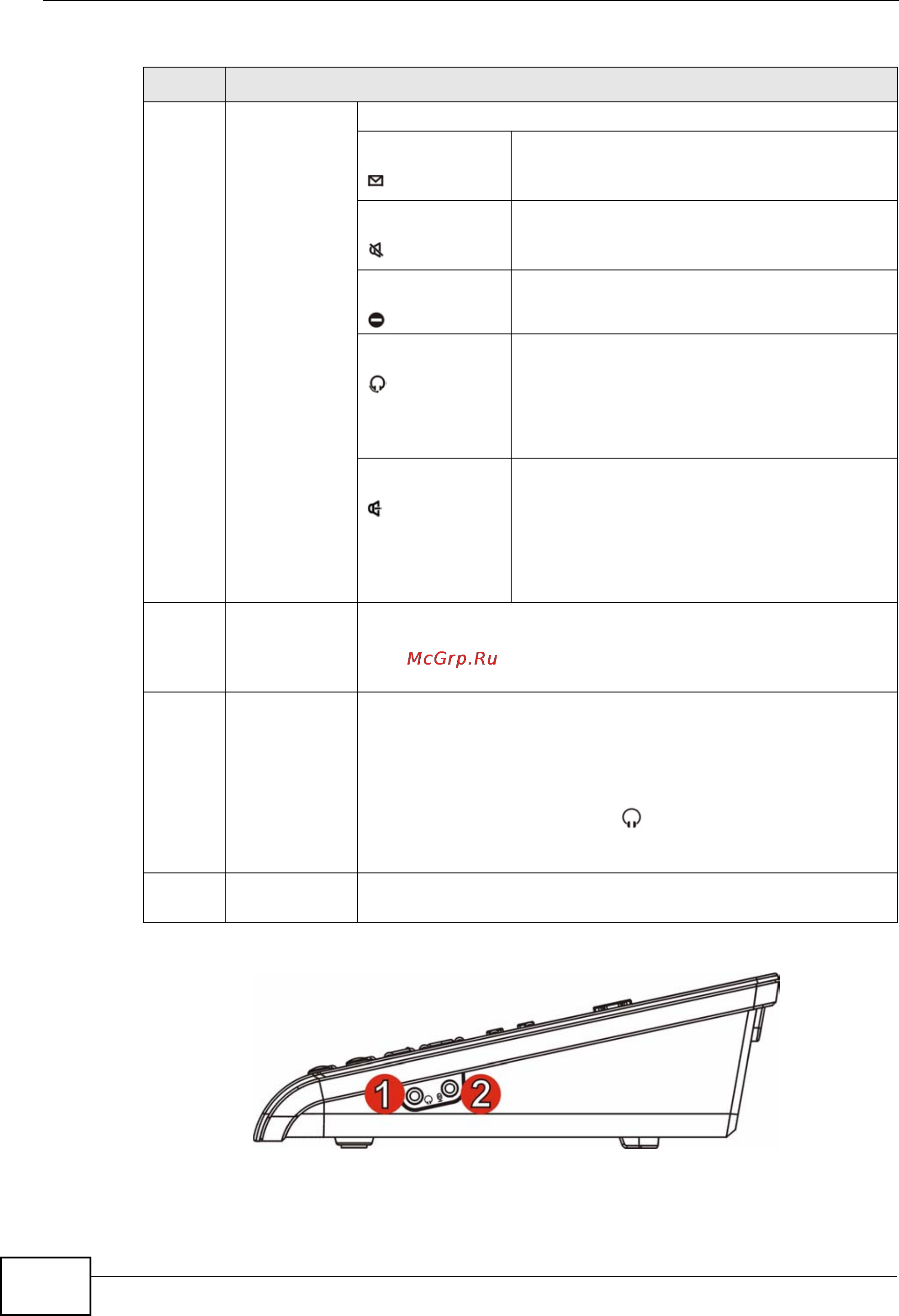

Figure 5 Side Panel

7 Function keys The LEDs (lights) in these keys illuminate when they are active.

VOICEMAIL Use this to check your voicemail messages,

once the voicemail number is configured in

the V300.

MUTE Use this to mute the current call. The V300

no longer transmits a signal, but you can still

hear the incoming signal.

DND Use this to toggle the Do Not Disturb

function on or off.

HEADSET Use this to activate a line using the headset,

or to transfer a call to the headset when

using the handset or the speakerphone.

When a line is active and you are using the

headset, press this key to hang up.

SPEAKER Use this to activate a line using the

speakerphone, or to transfer a call to the

speakerphone when using the handset or the

headset.

When a line is active and you are using the

speakerphone, press this key to hang up.

8Alphanumeric

keypad

Use this to enter numbers, letters and symbols. Use the # key

to switch between Number mode, Uppercase mode, Lowercase

mode and Symbol mode. In the configuration menu, use a

numeric key (from 1 to 5) to go to a specific menu directly.

9 Volume keys Use the + key to increase the volume, and use the - key to

decrease it.

• When you use the handset, these keys control the handset’s

listening volume.

• When you use the headset, these keys control the listening

volume on the headphone ( ) port on the V300.

• When you use the speakerphone, these keys control the

internal speaker volume.

10 Microphone The microphone is active when the V300 is in speakerphone

mode.

Table 2 Front Panel Hardware (continued)

LABEL DESCRIPTION
