Troubleshooting
5
bizhub PRO 920 5-5
5.2 Clearing Mishandled Paper
When a paper misfeed occurs, the machine stops making copies and the
Jam Position Screen displays to indicate misfeed area(s).
The Start LED turns orange on the control panel, and copying operation
cannot be continued until all the misfeed locations are cleared.
All the misfeed locations will be indicated by flashing/lighting numbers and
arrows on this screen. Flashing number and arrow indicate the jammed
position of the highest priority.
Action to remove mishandled paper is displayed in the message area, and
touching [Illustration] will display subsequent screens for the disposal action.
Follow the procedure below to remove mishandled paper.
2
Reminder
Before performing the clearing procedure, see "Caution Labels and
Indicators" on page 1-12 for the caution label locations inside the
machine.
To remove mishandled paper

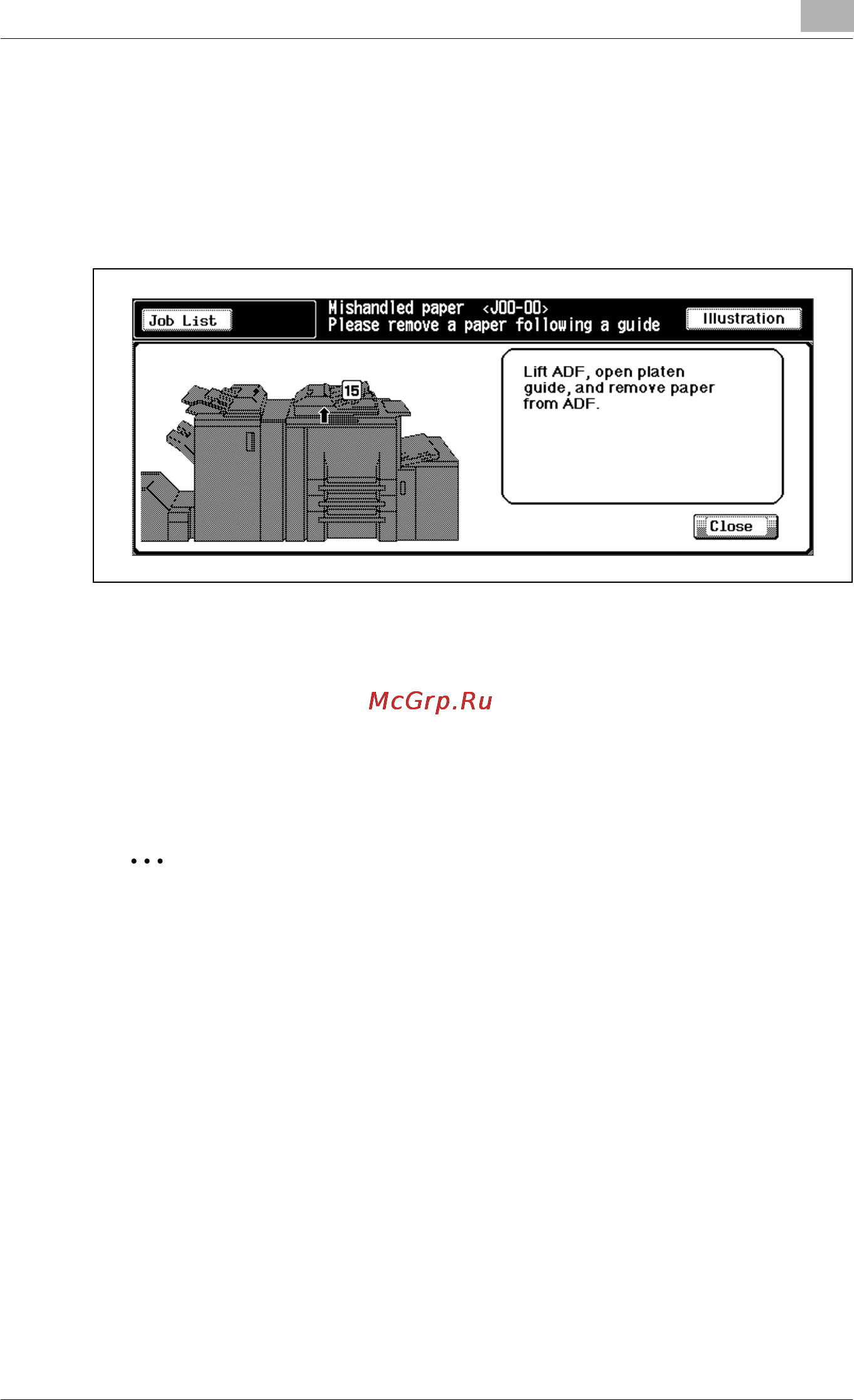

1 Touch [Illustration] on the screen.
The screen illustrating the method for the disposal action will be
displayed.
