Konica Minolta bizhub PRO 920 [327/980] Storing image on hdd overlaying stored image program image overlay

Applications

bizhub PRO 920 11-91

11.24 Storing Image on HDD / Overlaying Stored Image

(Program Image Overlay)

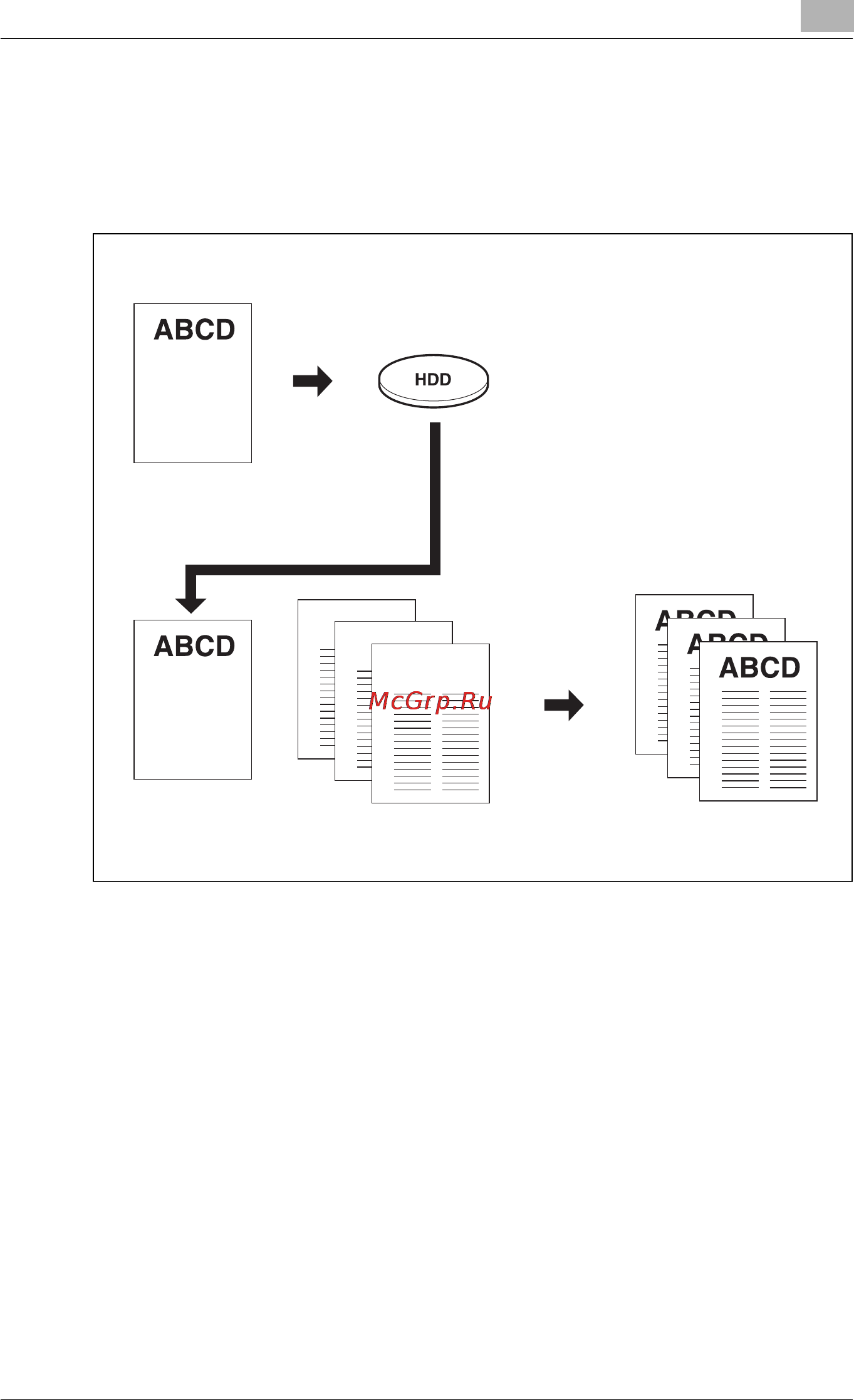

Use this function to scan and store several images on HDD, then recall the

desired image from the HDD to overlay onto each page copied in the job.

Specifications for Program Image Overlay

0 Use original glass to scan overlaying image.

0 Separate Scan mode is automatically selected.

0 Auto Zoom and Auto Paper Select are automatically released, and 1.000

(100 %) is selected as a magnification ratio.

Output

Overlaying image

Recalled image Overlay originals

Recall overlaying image

Copies in Overlay Memory mode

Output

Store

Image Store
