Konica Minolta bizhub PRO 920 [324/980] Overlay an image onto each page copied in the job image overlay

Applications

11-88 bizhub PRO 920

11.23 Overlay an Image onto Each Page Copied in the Job

(Image Overlay)

Use this function to scan an image, then overlay the image onto each page

copied in the job.

Specifications for Image Overlay

0 Separate Scan mode is automatically selected.

0 Auto Zoom and Auto Paper Select are automatically released, and 1.000

(100 %) is selected as a magnification ratio.

1 Touch [Application].

The Application Screen will be displayed.

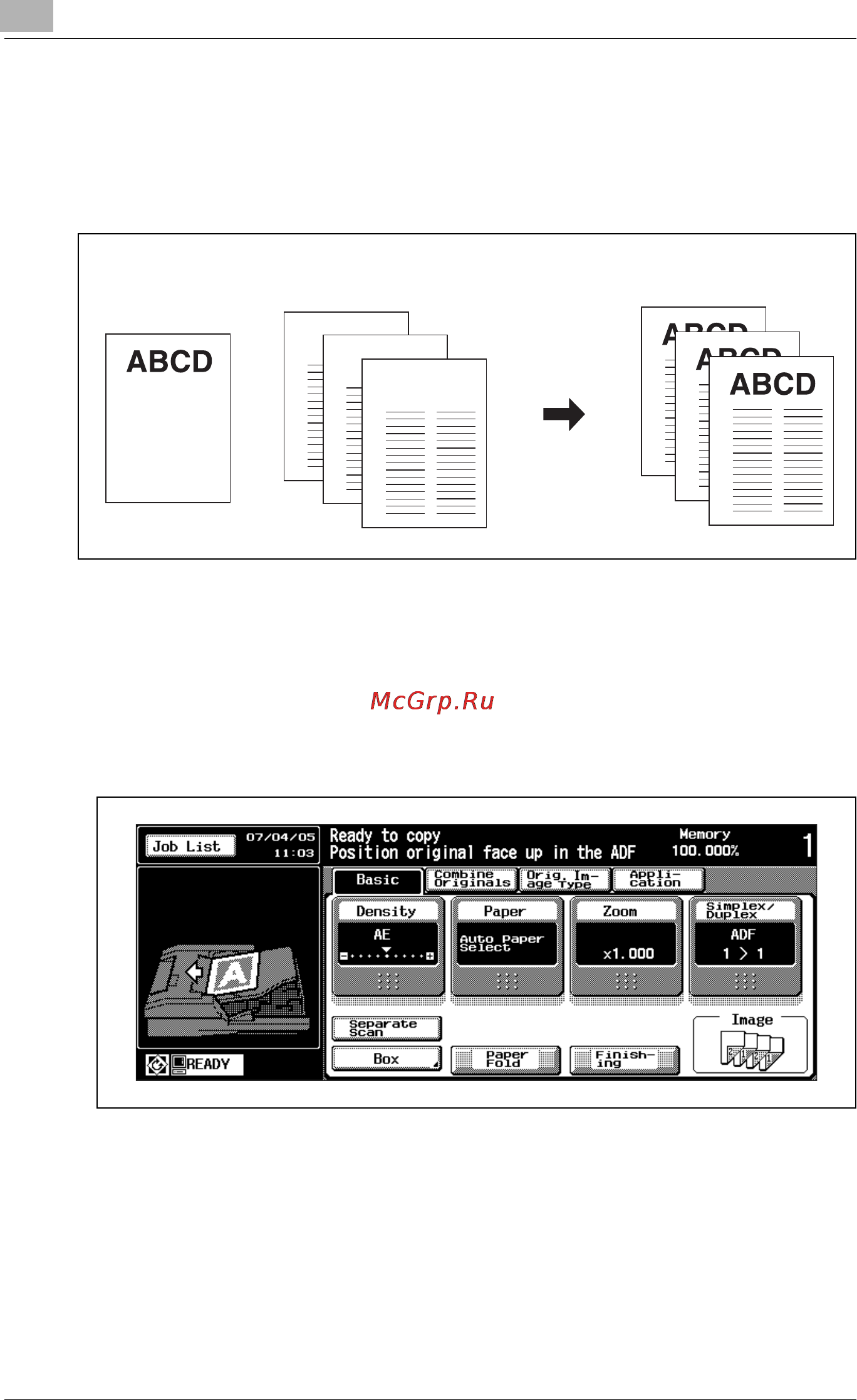

1st scanned original

Copies in Overlay modeOriginals scanned 2nd

and later
