Konica Minolta bizhub PRO 920 [858/980] Display when enhanced security mode is on

Enhanced Security Mode

22-6 bizhub PRO 920

22.3 Display when Enhanced Security mode is ON

The Administrator can turn Enhanced Security mode ON/OFF.

Detail

To turn Enhanced Security mode ON/OFF, see "To turn Enhanced

Security mode ON/OFF" on page 22-5.

When Enhanced Security mode is ON, the enhanced security icon [ ] will

appear on the Copy/Box/Scanner Basic Screens.

Check the Enhanced Security icon on each Basic Screen to see if Enhanced

Security mode is ON or OFF.

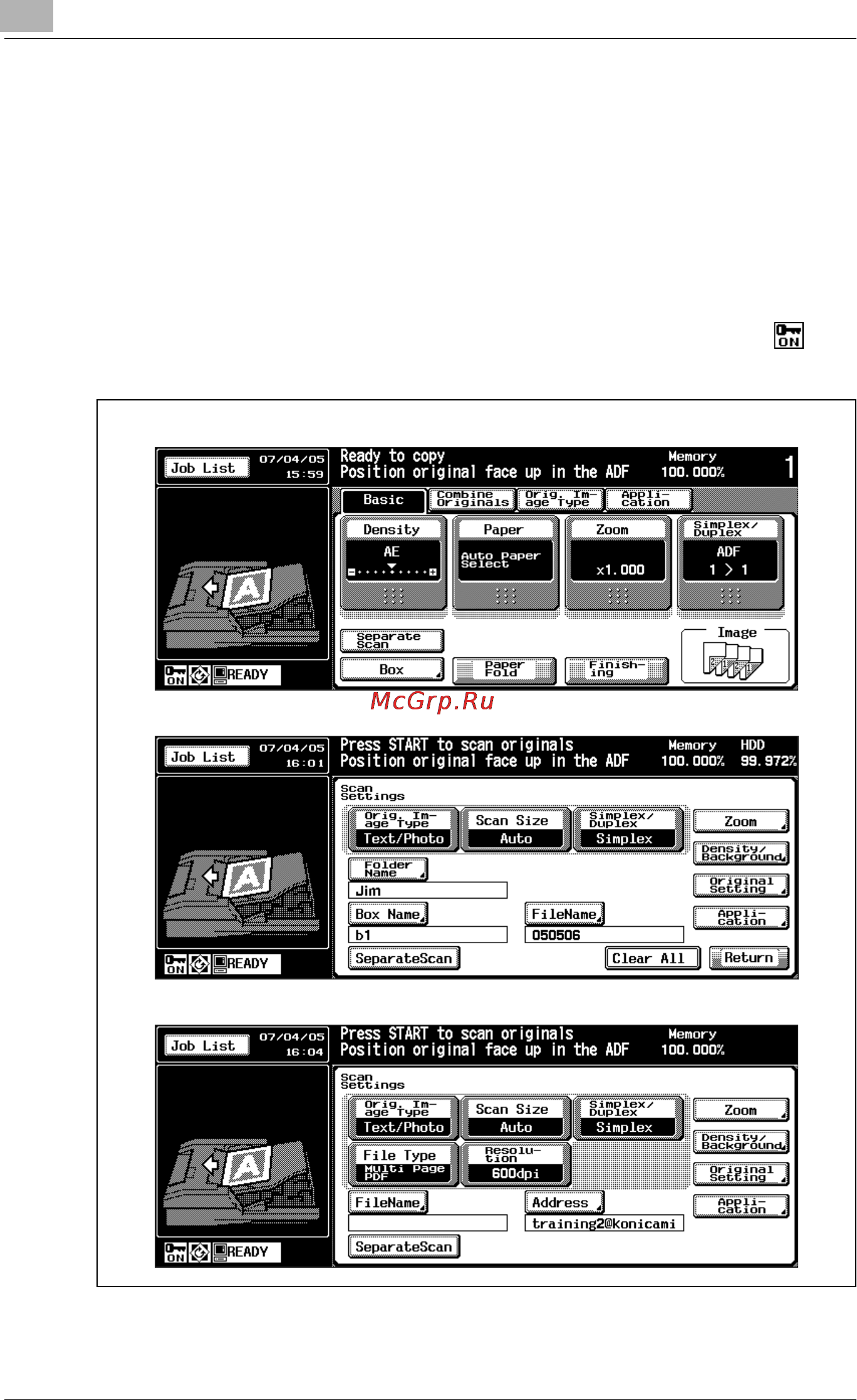

Copy Basic Screen

Box Basic Screen

Scanner Basic Screen
