Applications

11-36 bizhub PRO 920

11.10 Repeating Automatically or Select Repeating Times

(Image Repeat: Size Auto Detect / Repeat)

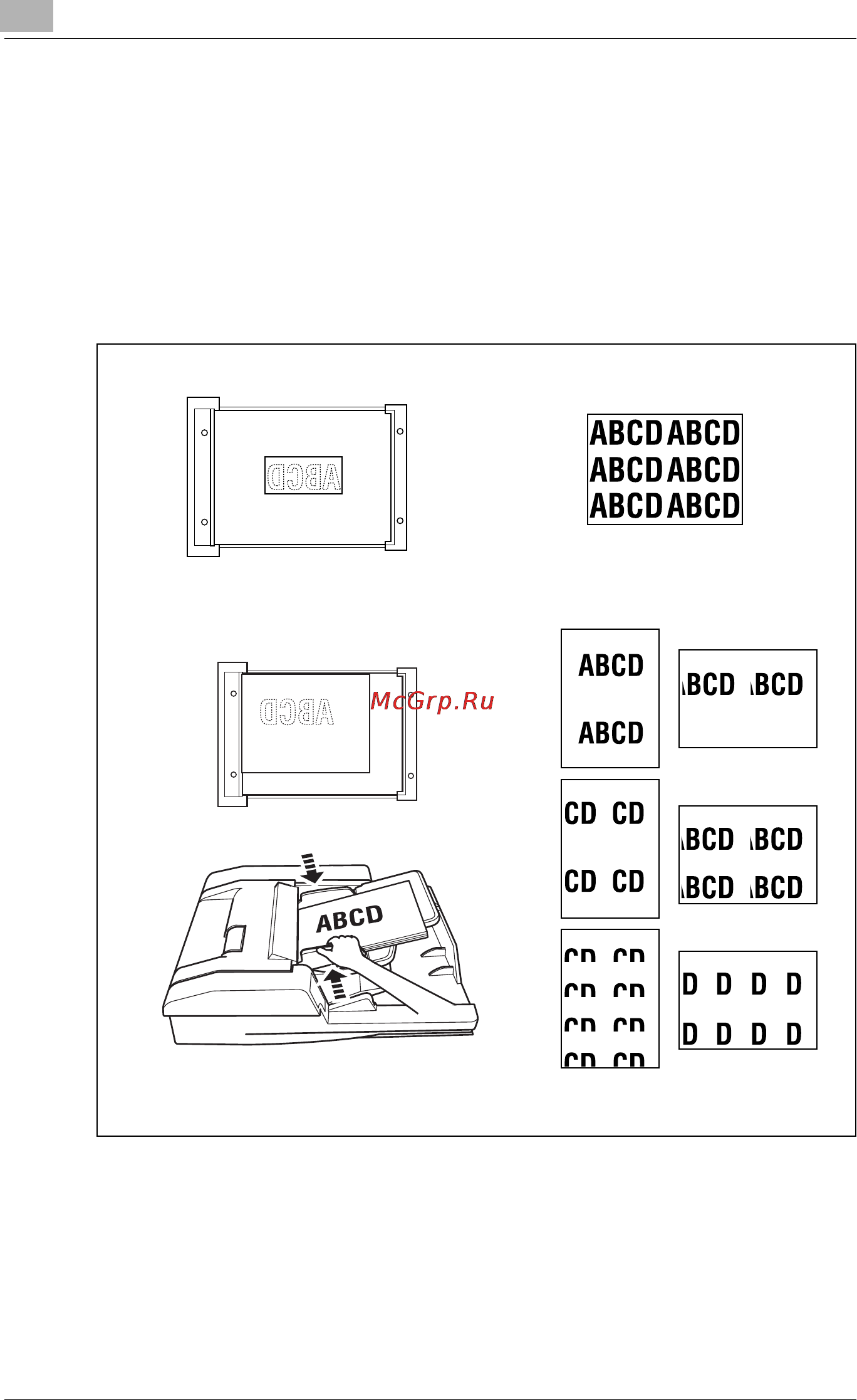

Size Auto Detect mode will automatically set the equal repeat area to the size

of the original placed onto the original glass by activating Non-Image Area

Erase. Repeat mode will scan the image area specified by the selected paper

size and mode (2 Repeat, 4 Repeat, or 8 Repeat), then arrange the image by

specified times in one copy sheet. Use 2 Repeat in designated order mode

to have the same cut side when cutting copied sheets in two.

Size Auto Detect mode

Repeat mode

2 Repeat

4 Repeat

8 Repeat
