Konica Minolta bizhub PRO 920 [477/980] 2 function setting

Utility <User Setting>

bizhub PRO 920 17-27

17.4 2 Function Setting

1 Feed Tray Setting>1 Feed Tray Auto Selection

Select the tray size setting to be detected when ATS functions. You may also

select the priority of the detection for each tray.

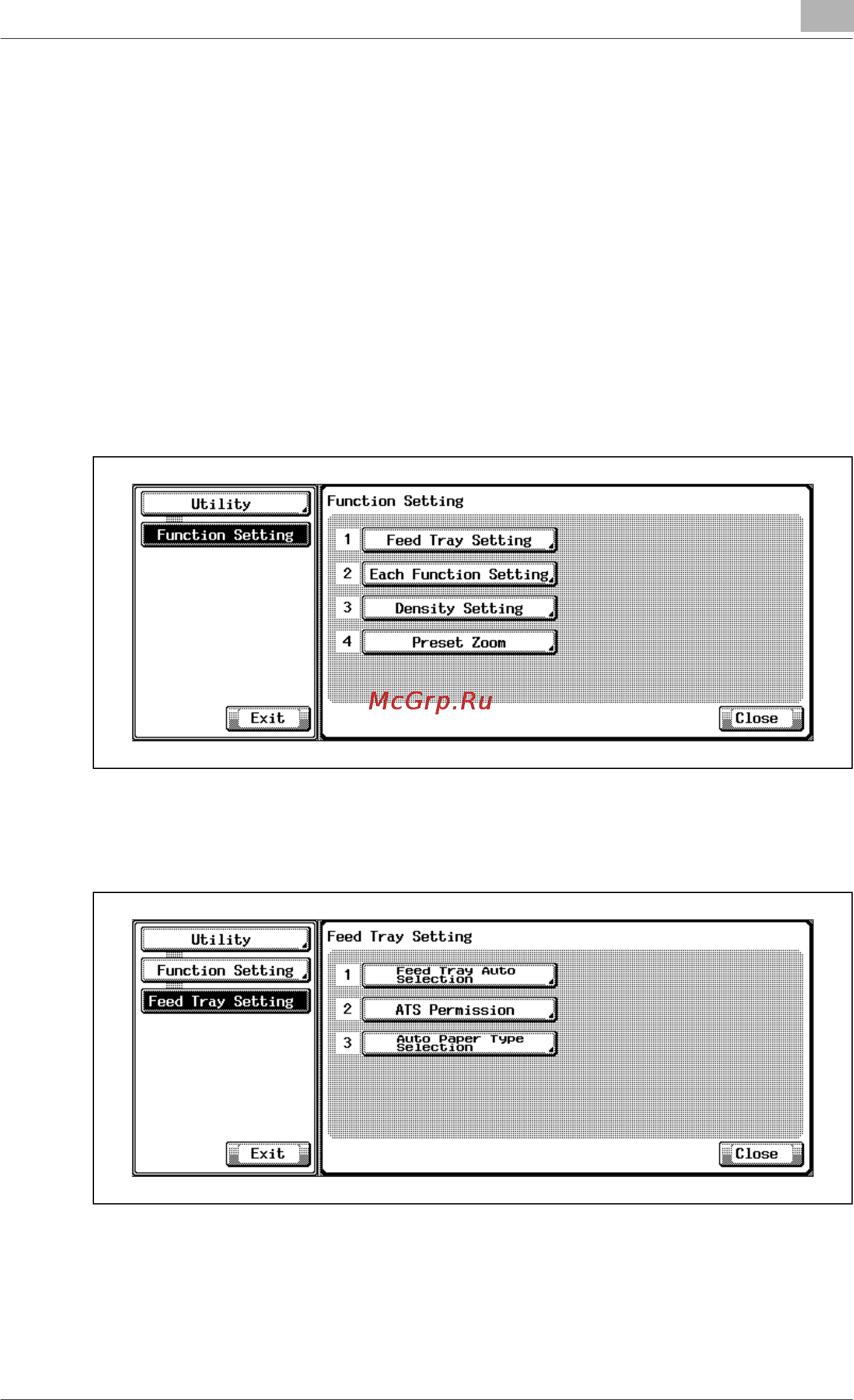

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

The Function Setting Screen will be displayed.

3 Touch [1 Feed Tray Setting].

The Feed Tray Setting Screen will be displayed.

4 Touch [1 Feed Tray Auto Selection].

The Feed Tray Auto Selection Screen will be displayed.
