2
Preparation for Use
2-20 bizhub PRO 920
Trimmer Unit TU-501
2
Reminder
DO NOT place heavy objects on the trimmer stacker or apply any weight
on it. Excessive weight applied to the inside or outside of the trimmer
stacker will damage the equipment.
DO NOT use the stacker for storage. The tray inside the stacker slides to
the left while finished sets are delivered; impeding the movement may
cause an unexpected trouble.
6
5
4
3
2
1

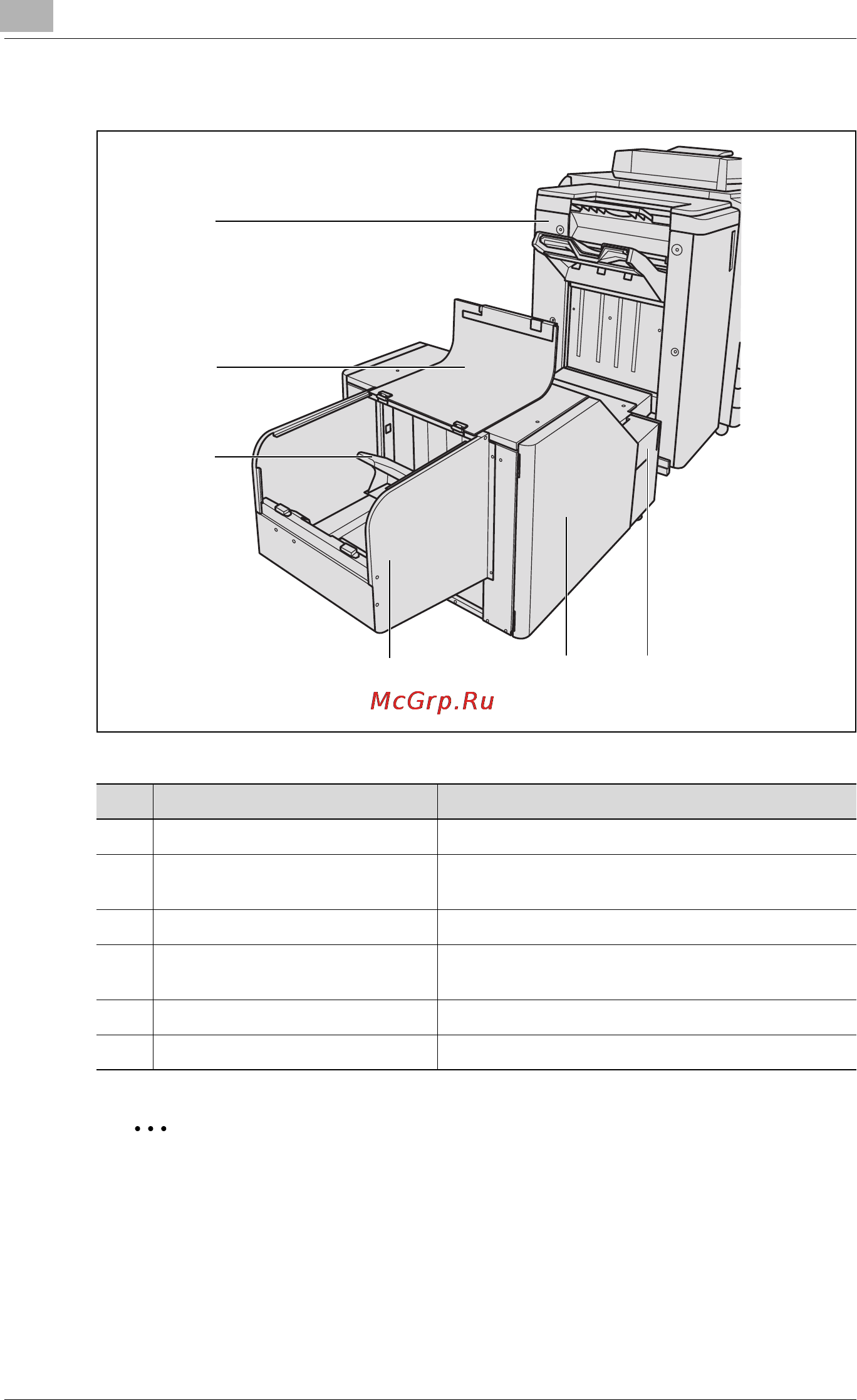

No. Name Description
1 Front-right cover Opens to allow removal of mishandled paper.
2 Front door Opens to allow removal of mishandled paper or
waste paper.
3 Trimmer stacker Holds sets output in Trimming mode.
4 Trimmer unit tray Slides to the left side each time a trimmed booklet
is delivered.
5 Trimmer stacker cover Opens to allow you to take out the finished sets.
6 Finisher FS-604 Available for the Trimmer unit to be installed.
