Utility <Administrator Setting>

bizhub PRO 920 18-175

2 IP NIC Setting>16 SNMP Trap

Specify the SNMP Trap settings.

Detail

Before setting the SNMP Trap, specify to use SNMP in 4 Network

Setting> 2 IP NIC Setting> 5 SNMP.

1 Press the [Utility/Counter] to display the Utility Screen.

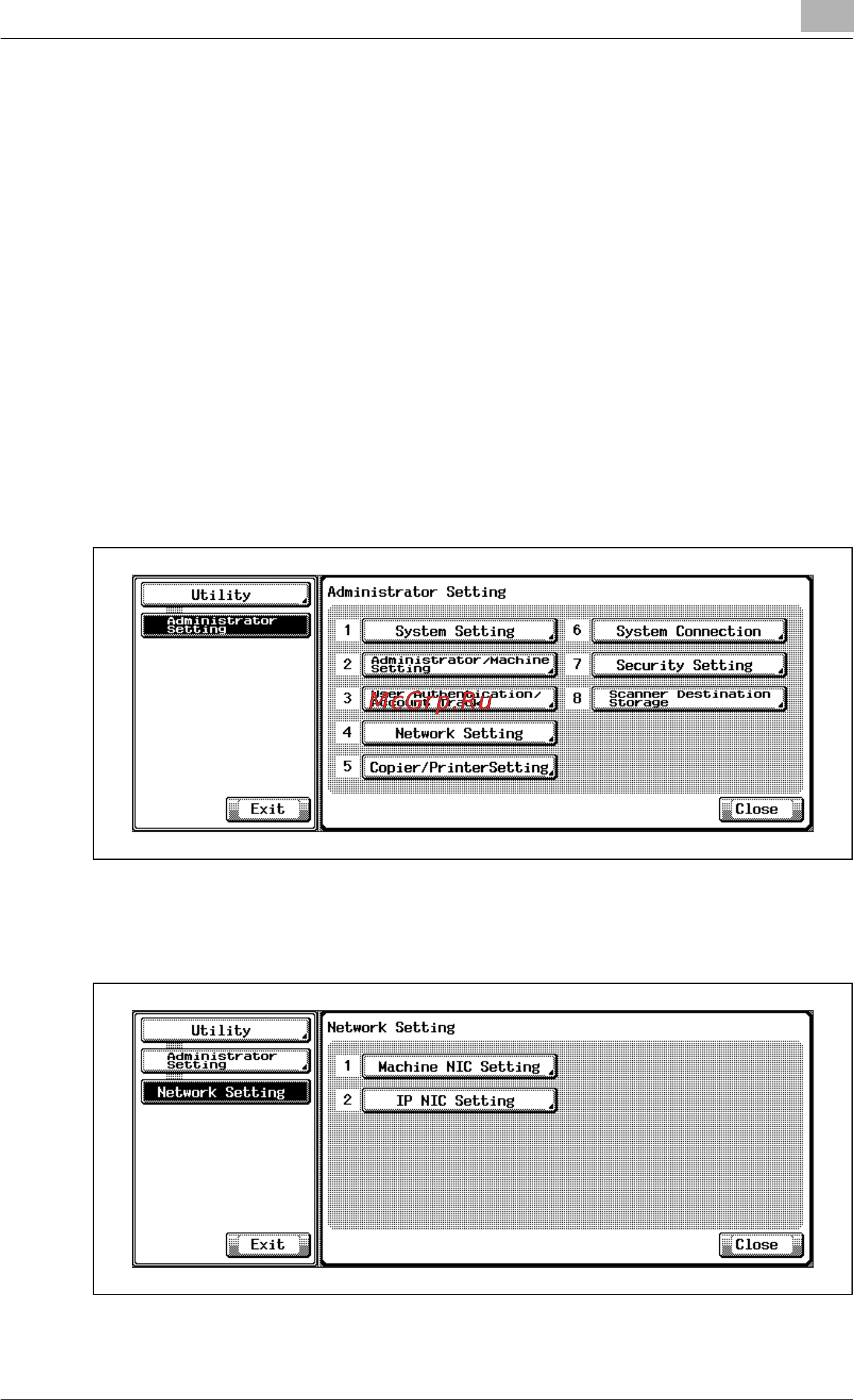

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [4 Network Setting].

The Network Setting Screen will be displayed.

4 Touch [2 IP NIC Setting].

The IP NIC Setting Screen will be displayed.
