11
Applications
11-18 bizhub PRO 920
11.5 Inserting Images into Printed Sets (Insert Image)
Use the Insert Image mode to combine images scanned from the original
glass, such as photos, paste-ups, newspaper articles, graphs, etc., with
images scanned from the document feeder. Then, output the combined
images as a finished set.
The selected copy paper size is determined by the size of originals loaded in
the document feeder.
2
Note
Touch [Booklet Pagination] on the Insert Image Screen to use this
function together with Insert Image.
To set Insert Image function
0 Max. insertion location: 30 locations, from page 1 to page 999
0 When a page number is larger than the total original count, a sheet is
inserted as the last page.
0 Insertions occur in sequence, even if page numbers are entered out of
sequence.
0 Entering the same page number twice will insert two sheets at that
location.

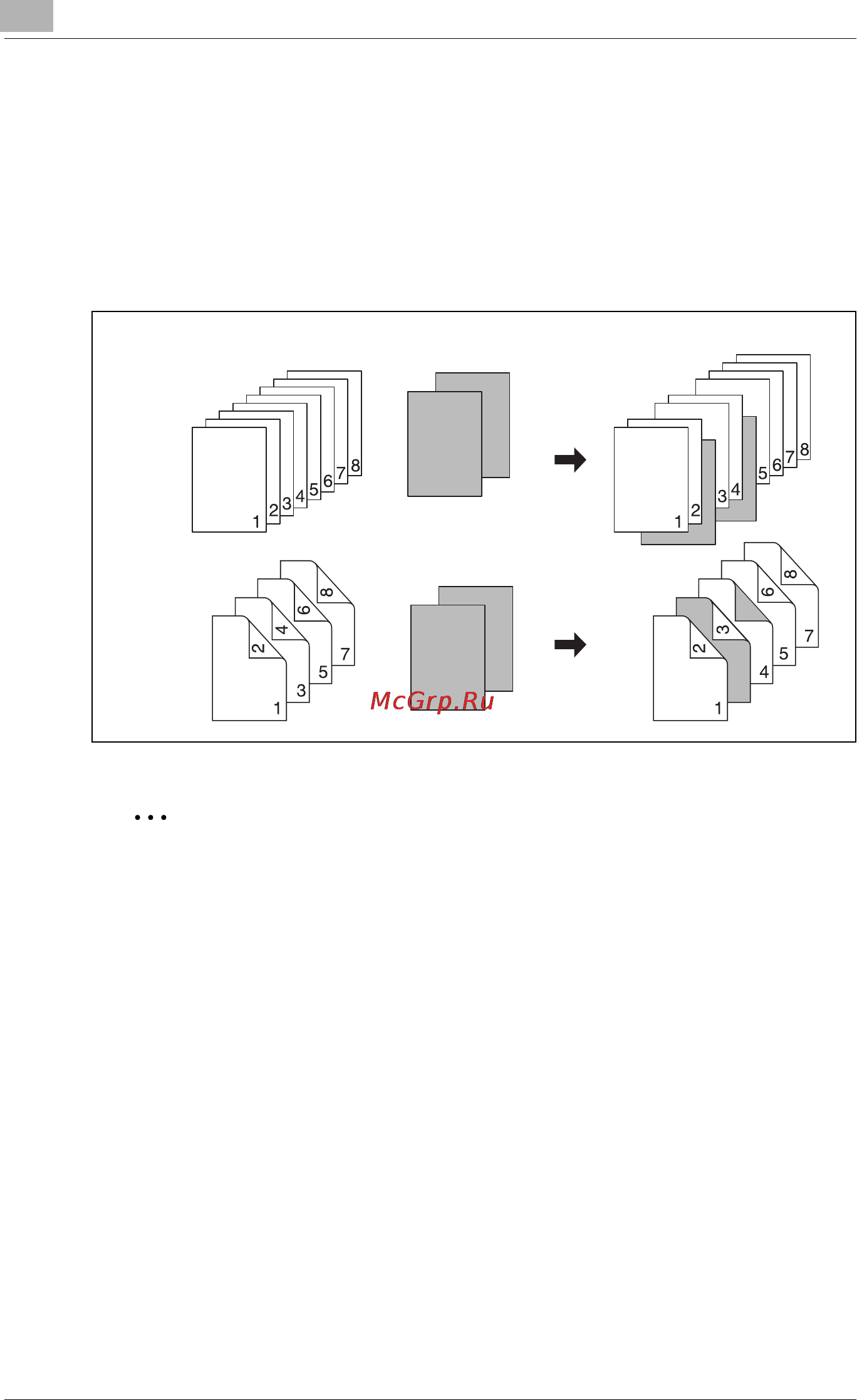

Single-sided originals
placed on ADF
Insertion originals
on original glass
Double-sided
originals
placed on
ADF
