Konica Minolta bizhub PRO 920 [827/980] Appletalk

PageScope Web Connection Setting

bizhub PRO 920 20-37

AppleTalk

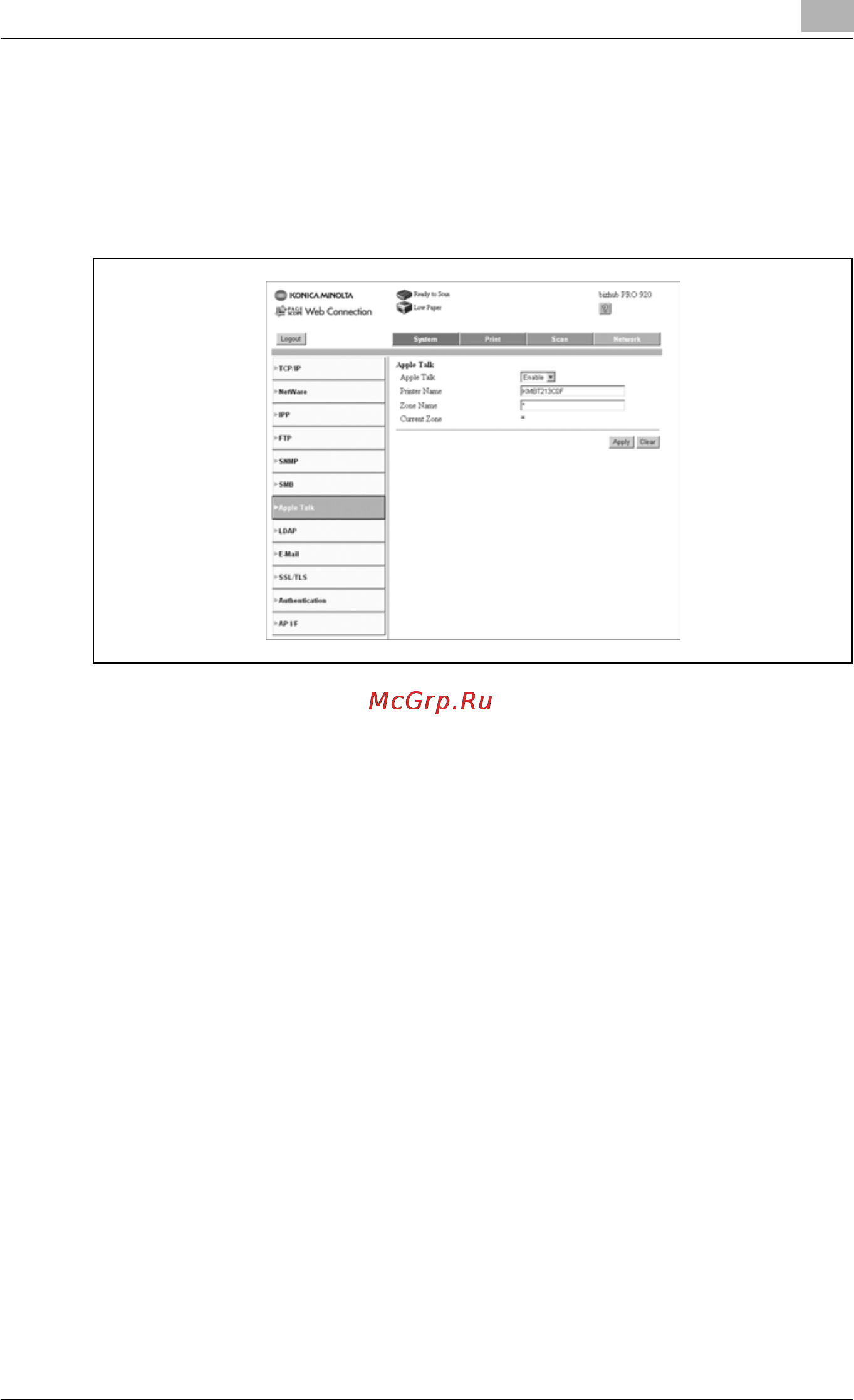

This screen appears when you click [Apple Talk] on the [Network] tab. The

screen is used to enter and confirm settings concerning Apple Talk.

When Apple Talk is set to disable, you still need to set parameters. Make sure

to enter parameters correctly.

Description

- Enter for individual items.

Apple Talk, Printer Name, Zone Name.

- [Apply] button:

Click the button to apply the new settings.

- [Clear] button:

Click the button to clear the settings that were entered.
