Konica Minolta bizhub PRO 920 [185/980] To use multi sheet bypass tray

Basic Job Settings

bizhub PRO 920 9-17

To use Multi-sheet bypass tray

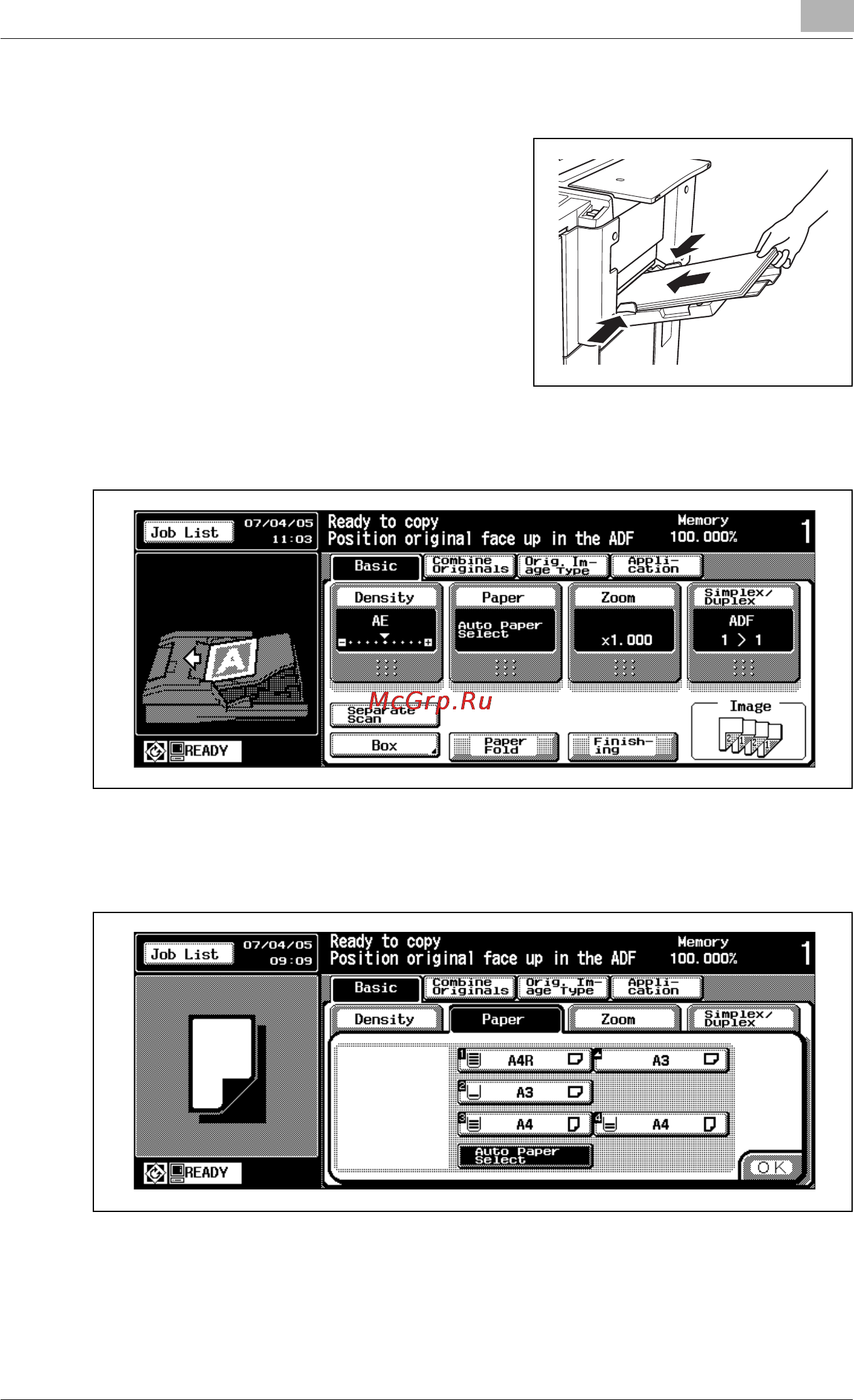

1 Open the Multi-sheet bypass tray,

and load the copy paper.

2 Touch [Paper] on the Basic Screen.

The Paper setting menu will be displayed.

3 Touch the bypass tray key.

The [Bypass Setting] key will appear on the menu.
