Konica Minolta bizhub PRO 920 [97/980] To exchange toner bottle

Supplies & Handling

bizhub PRO 920 4-15

To exchange toner bottle

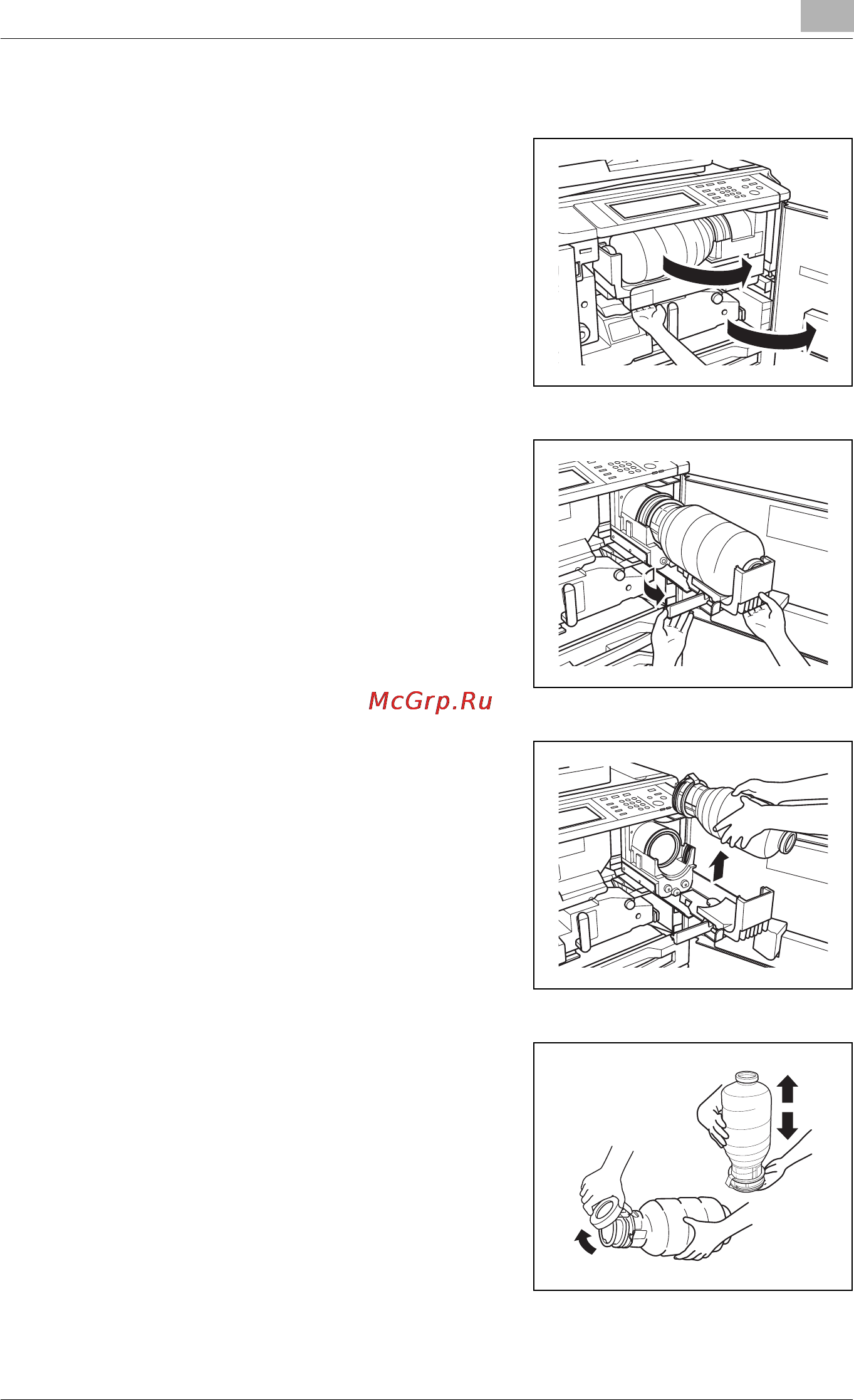

1 Open the machine front door, then

pull out the toner unit 90 degrees to

the right.

2 Pull forward the lever on the left side

of the toner unit until it stops.

3 Remove the empty toner bottle.

4 Shake the new toner bottle several

times to loosen toner, then remove

the toner bottle cap.
