Supplies & Handling

4-16 bizhub PRO 920

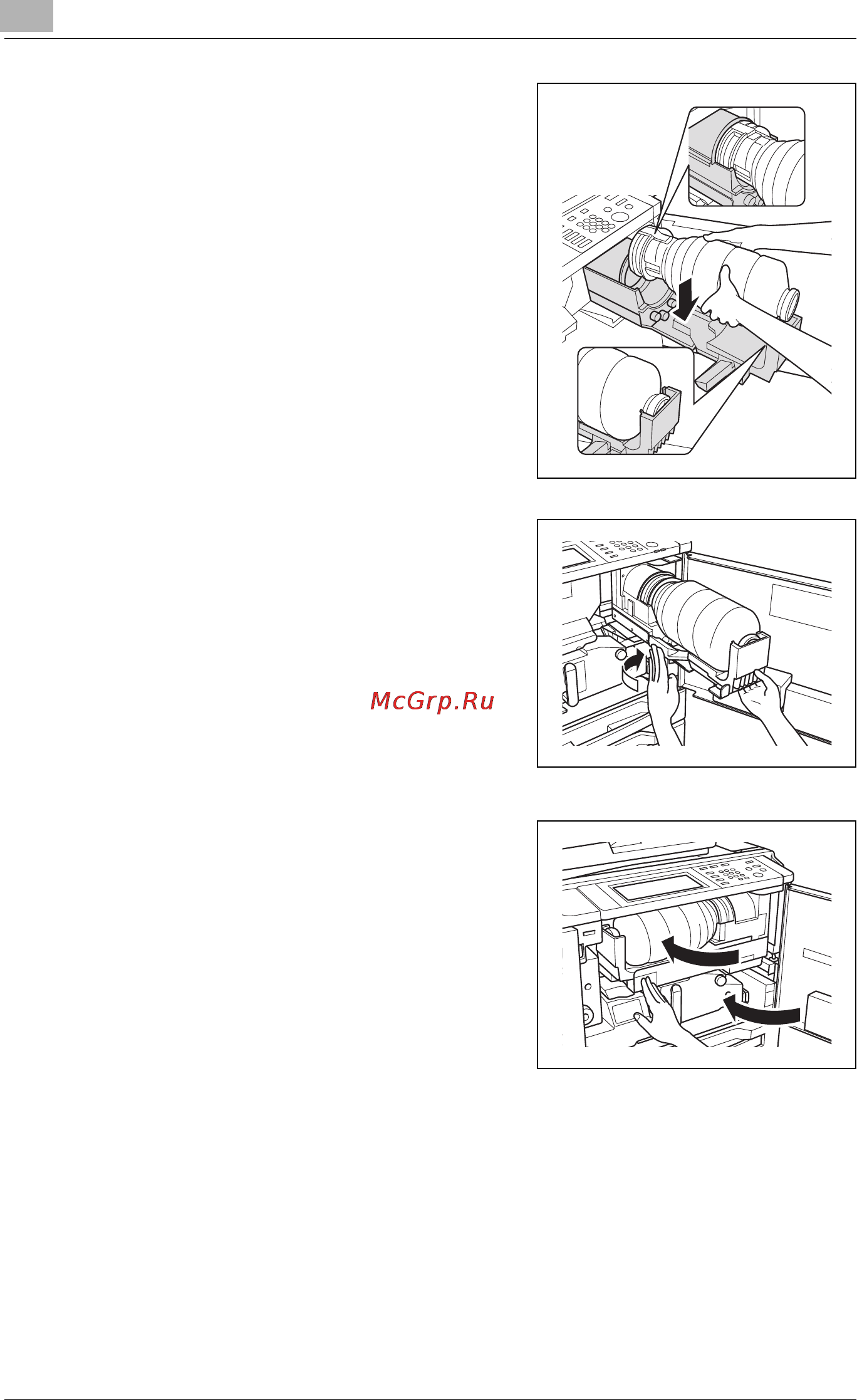

5 Set the new toner bottle into the

toner unit, positioning the hollow part

of the toner bottle on the top.

– Be sure to set the hollow part of

the toner bottle upward,

otherwise the machine trouble

may occur.

6 Push the lever backward until it

stops.

7 Return the toner unit to its original

position, then close the machine

front door securely.
