Utility <User Setting>
17-72 bizhub PRO 920
17.7 5 Touch Panel Adjust
Use this function to check the touch screen and realign the position of the
touch sensor that may have shifted.
!
Detail
The Touch Panel Adjust Screen can be displayed on the Utility Screen by
pressing [5] of the control panel keypad.
Service can set the machine to disable the [5 Touch Panel Adjust] key in
case of malfunction. If the key is grayed out, press [5] of the control panel
keypad to display the Touch Panel Adjust Screen. Contact your service
representative, if desired.

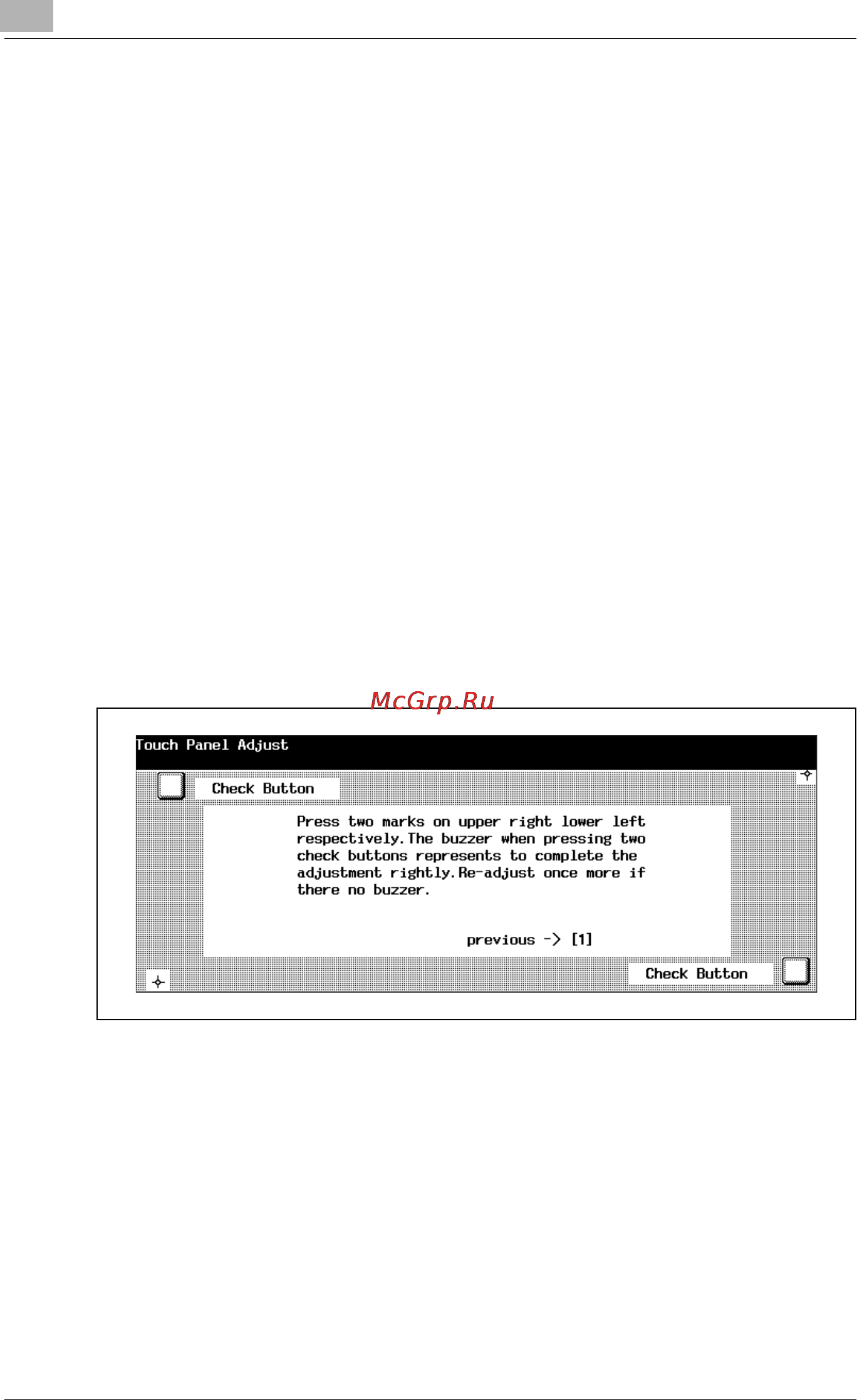

1 Press the [Utility/Counter] to display the Utility Screen.
2 Touch [5 Touch Panel Adjust].
3 Touch the [+] symbol at the upper right corner, then lower left corner
on the screen. The present coordinates will be displayed in the
message area of the screen.
4 Check that the X coordinate and Y coordinate displayed in the first line
of the message area fall within the standard value displayed in the
second line.
5 Touch each [Check Button] at the upper left and lower right corners on
the screen to check if the buzzer tone functions normally.
6 If the coordinates fall out of the range of the standard value in step 4,
or the buzzer tone does not sound in step 5, repeat the adjustment
procedure from steps 4 to 5 or contact your service representative.
