11
Applications
11-22 bizhub PRO 920
11.6 Copying onto Transparent Films (OHP Interleave)
Use the OHP Interleave function in 1-1 or 2-1 mode to copy onto overhead
projection transparent films, and output a blank or copied interleaf sheet with
each copied transparent film.
In the Interleave Blank mode, a blank interleaf sheet is output with each
transparent film to keep the film material from sticking together.
In the Interleave Copy mode, a copied interleaf sheet is output with each
transparent film to provide reference during a presentation, a medium for
photocopying, and a set for filing or inserting into a binder.
To set OHP Interleave function
0 OHP transparent film source: Multi-sheet bypass tray
0 Print quantity is set to 1 automatically and cannot be altered.
0 Auto Zoom is automatically selected. To release Auto Zoom, select the
desired magnification.
0 Bypass tray setting is automatically set to OHP.
1 Set transparent films into the Multi-sheet bypass tray.
2 When interleaf sheet is needed, load copy paper in any other tray to
match the size of transparent films.

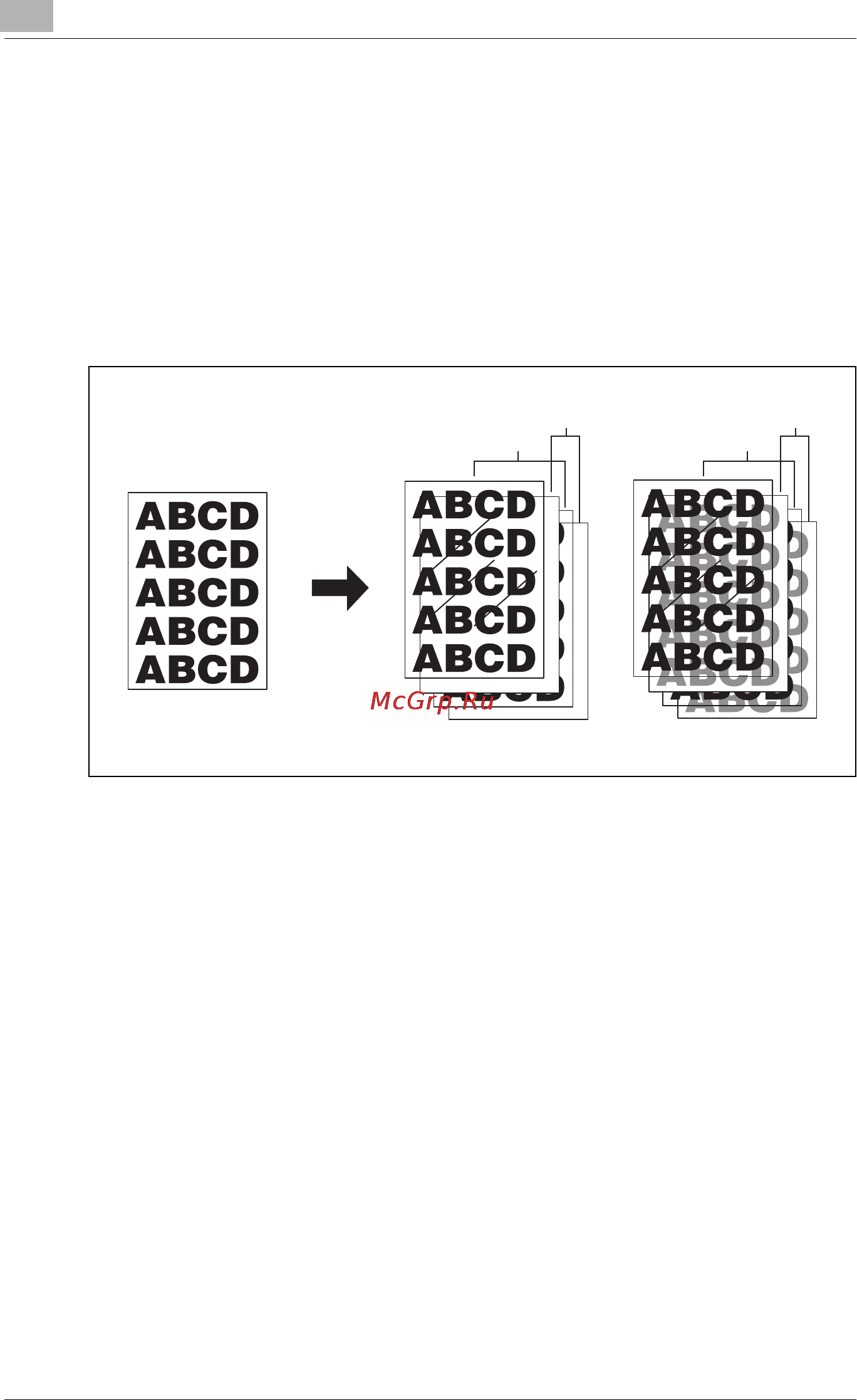

Interleave Blank
Interleave Copy
Transparent films
Transparent films
Blank interleaf sheets
Copied interleaf sheets
