Utility <User Setting>

bizhub PRO 920 17-3

17 Utility <User Setting>

17.1 User Setting Outlines

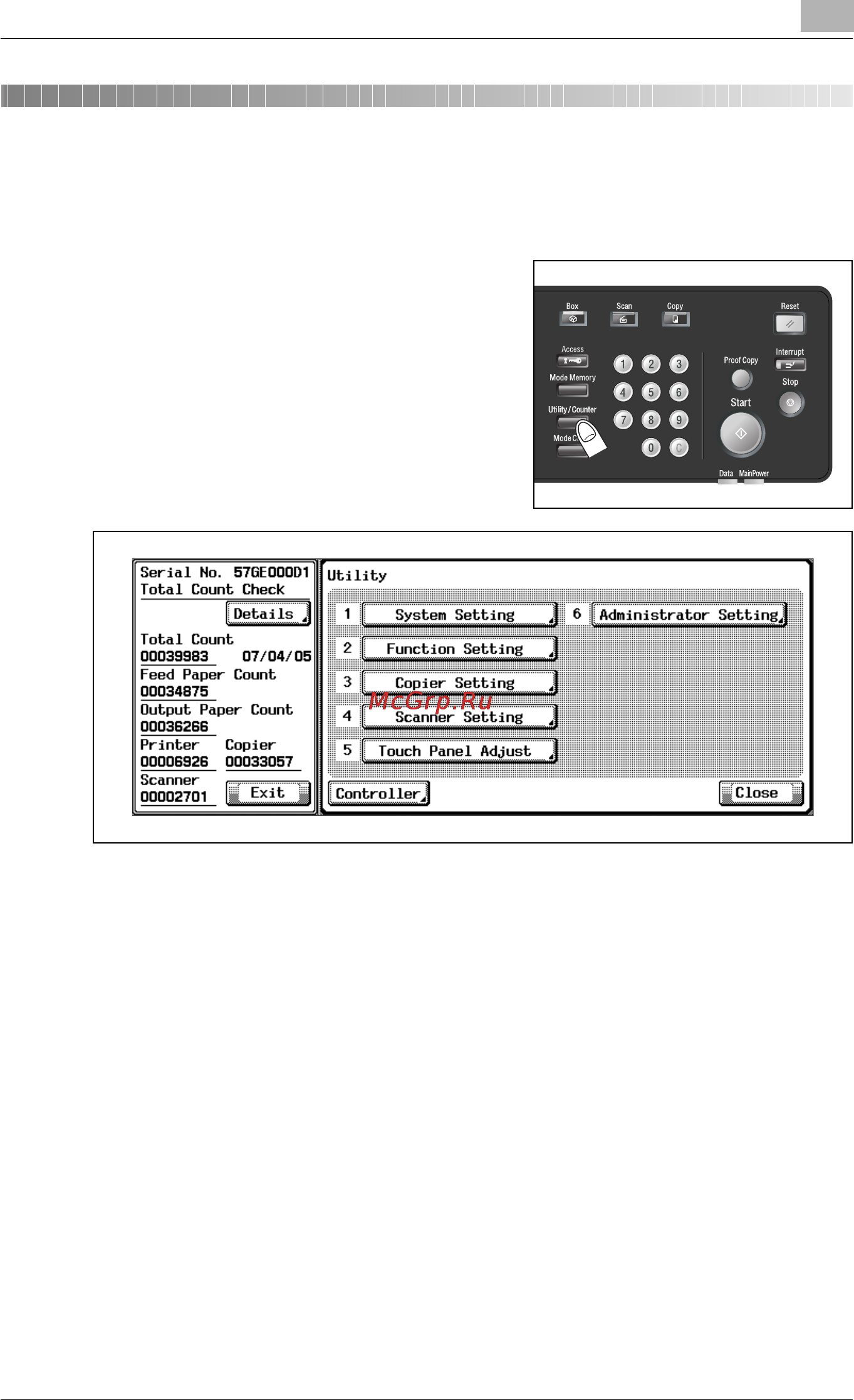

Press the [Utility/Counter] on the control

panel to display the Utility Screen.

The Utility Screen includes two types of setting items: one in which a user

can set and the other in which an administrator is required to enter a

password.

This section describes the user setting.
