Supplies & Handling
4
bizhub PRO 920 4-13
Loading Tabbed Sheets in Multi-Sheet Bypass Tray
0 The tab extension width should be 12.5 mm or less.
1 Open the Multi-sheet bypass tray.
2 Load tabbed sheets as illustrated above.
3 Adjust the paper guides to the paper size.
4 Specify the paper type for the Multi-sheet bypass tray.
!
Detail
See "Copying Using Special Paper (Bypass Tray Setting)" on page 9-16
for specifying the paper type of the Multi-sheet bypass tray.
Rear
Front

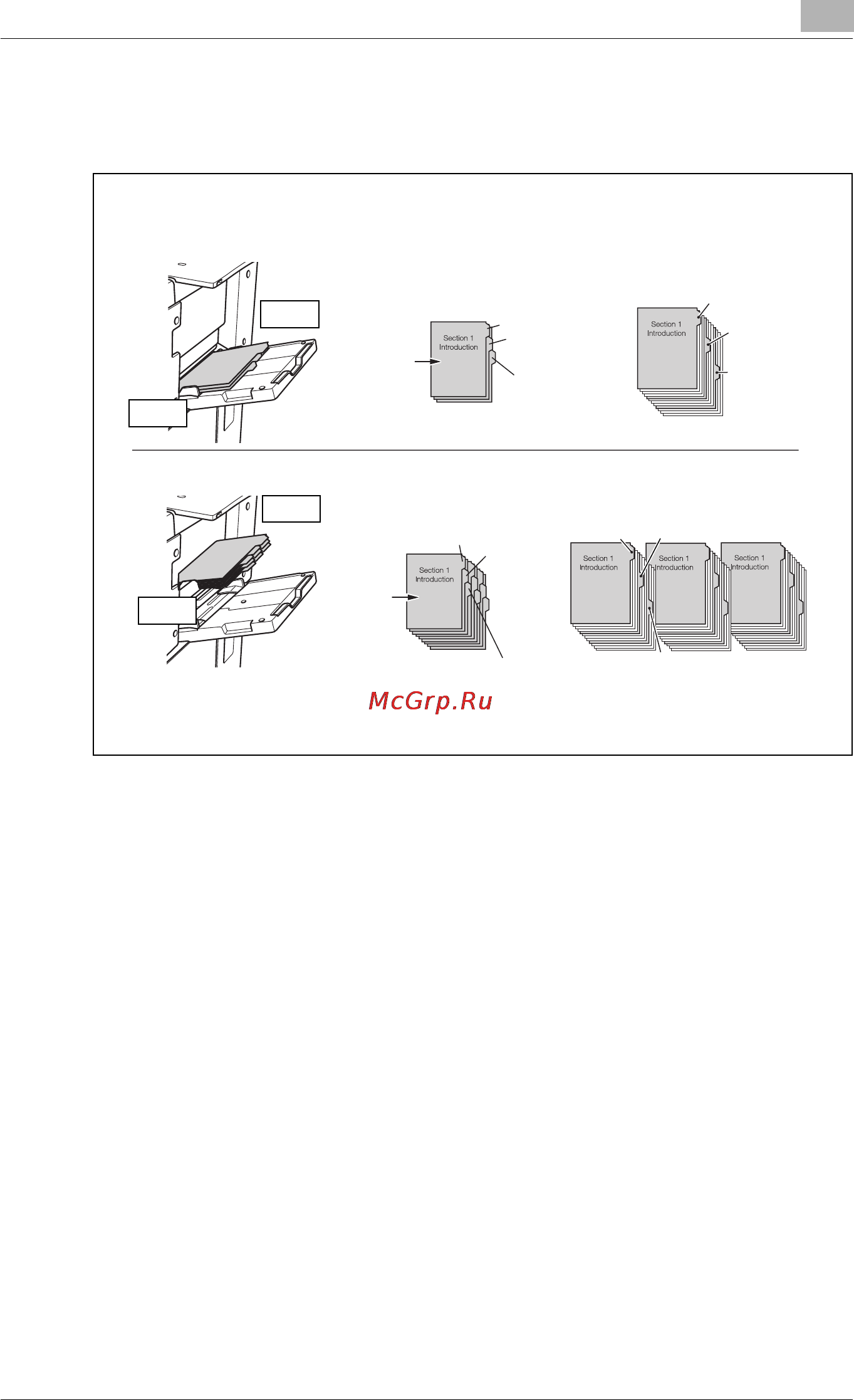

Example: 3 tabbed sheets loaded in position for one finished set
Example: 9 tabbed sheets loaded in position for 3 finished sets
Printed
side
1st TAB
3rd TAB
ONE FINISHED SET
3 FINISHED SETS
Printed
side
1st TAB
1st TAB
1st TAB
3rd TAB
3rd TAB
3rd TAB
2nd TAB
2nd TAB
2nd TAB
2nd TAB
Front
Rear
