Advanced Information
14
bizhub PRO 920 14-5
14.2 Checking Feature Selections Before Copying (Check
Mode)
Display the Check Screen to check the feature selections you made, and use
Proof copy to make a sample copy if needed, before making multiple copies.
This is a convenient and cost effective way of viewing the results of the
copying selections.
2
Reminder
Do not press [Stop] or [Reset] to change the setting, or all the settings will
restore the initial condition.
To use Check mode
0 Proof copy is available when using ADF, or when using Separate Scan
mode for multiple originals or originals to be scanned from original glass.
0 The following application functions can be released by touching [Clear]:
Program Job, Non-Image Area Erase, Neg. Pos. Reverse, Image
Centring, Full Scan, Overlay.
1 Select the desired copy conditions from the various setting screens.

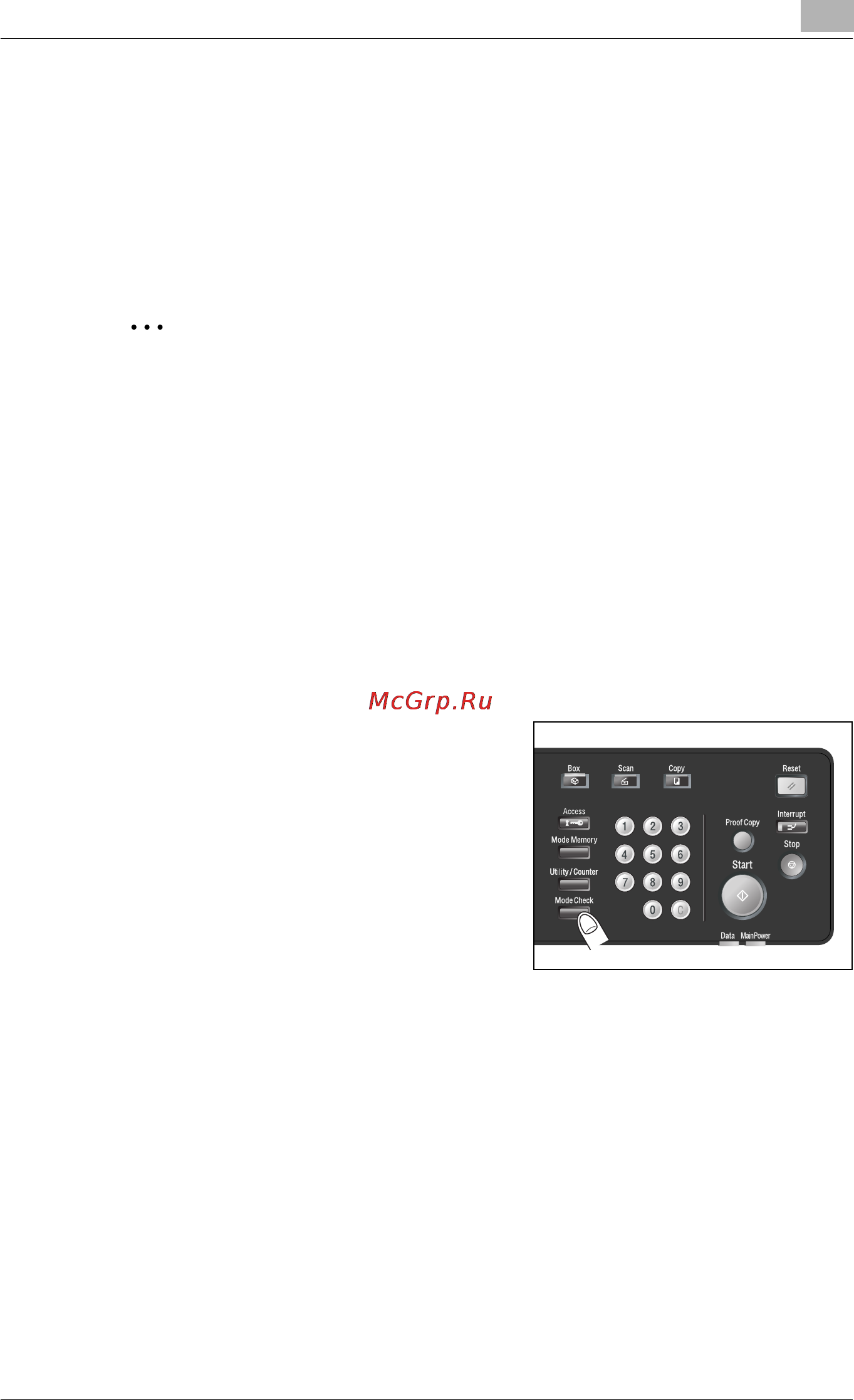

2 Press [Mode Check] on the control
panel.
The Check Screen will be displayed.
