Konica Minolta bizhub PRO 920 [481/980] Feed tray setting 3 auto paper type selection

Utility <User Setting>

bizhub PRO 920 17-31

1 Feed Tray Setting>3 Auto Paper Type Selection

Select the paper type setting of the tray which is automatically selected when

ATS functions. When the paper type that is not specified with this function is

designated to the tray that is automatically selected by ATS, the machine

indicates the paper type unmatched.

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

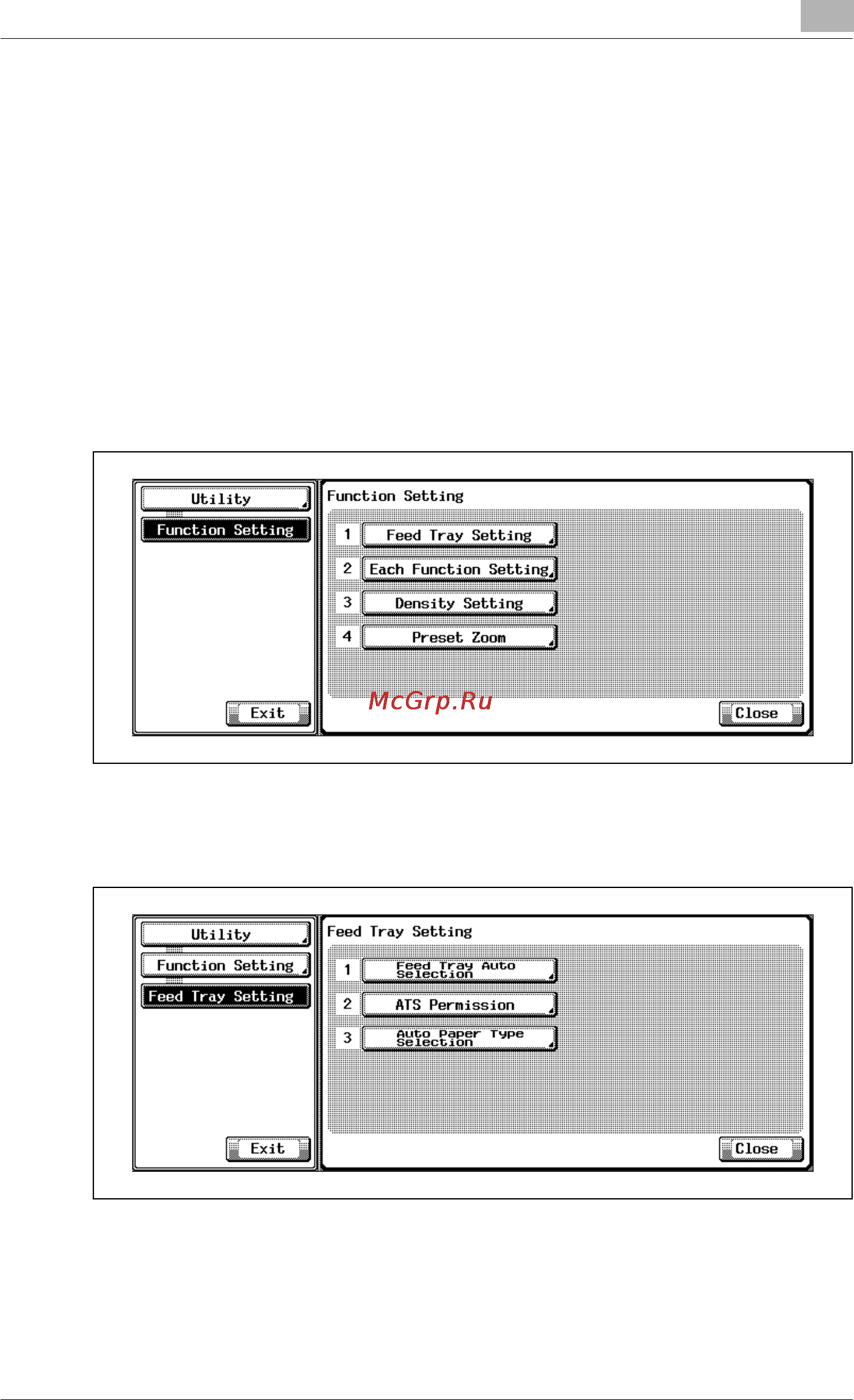

The Function Setting Screen will be displayed.

3 Touch [1 Feed Tray Setting].

The Feed Tray Setting Screen will be displayed.

4 Touch [3 Auto Paper Type Selection].

The Auto Paper Type Selection Screen will be displayed.
