Applications
11
bizhub PRO 920 11-37
To set Size Auto Detect and Repeat modes of Image Repeat
0 Use the original glass for Size Auto Detect mode. Document feeder
cannot be used.
0 ADF is available with Repeat mode.
0 Auto Paper Select and Auto Zoom are released and 1.000 magnification
is selected automatically.
0 When 2 Repeat, 4 Repeat, or 8 Repeat is selected, the scanning area will
be a portion of the selected paper size equally divided according to the
selected mode. In this case, magnification ratio will be fixed to 1.000 (100
%).
0 Copy mode is automatically set to 1-1. When selecting 1-2 mode,
Separate Scan mode will function automatically.
0 When Size Auto Detect mode is selected, Non-Image Area Erase
functions automatically. Do not close the document feeder when
scanning the original on the original glass.

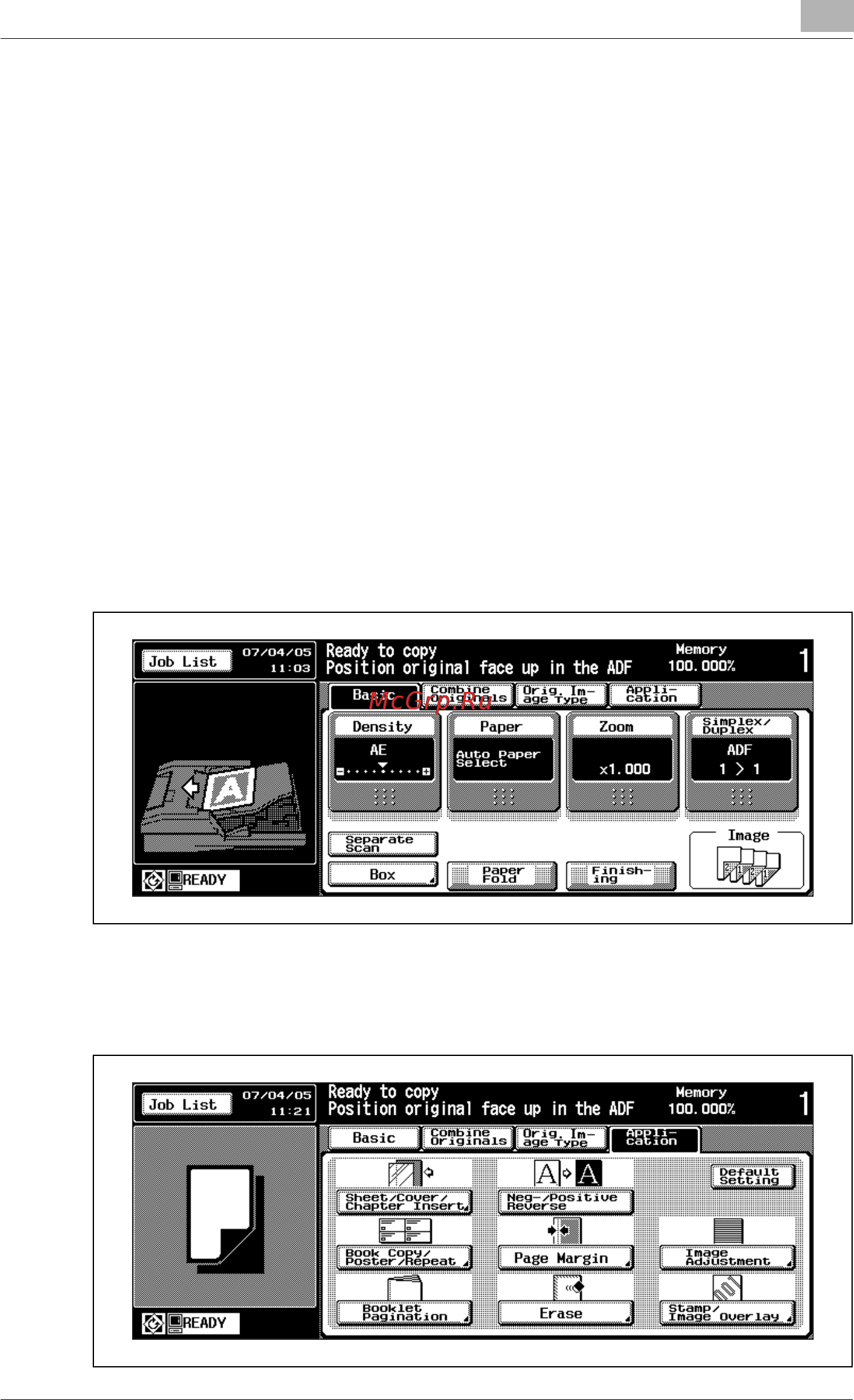

1 Touch [Application].
The Application Screen will be displayed.
2 Touch [Book Copy/Poster/Repeat].
