Konica Minolta bizhub PRO 920 [120/980] To change the tray selection

Troubleshooting

5-8 bizhub PRO 920

Follow the procedure below to change the tray selection for the current job,

or supply the empty tray with copy paper.

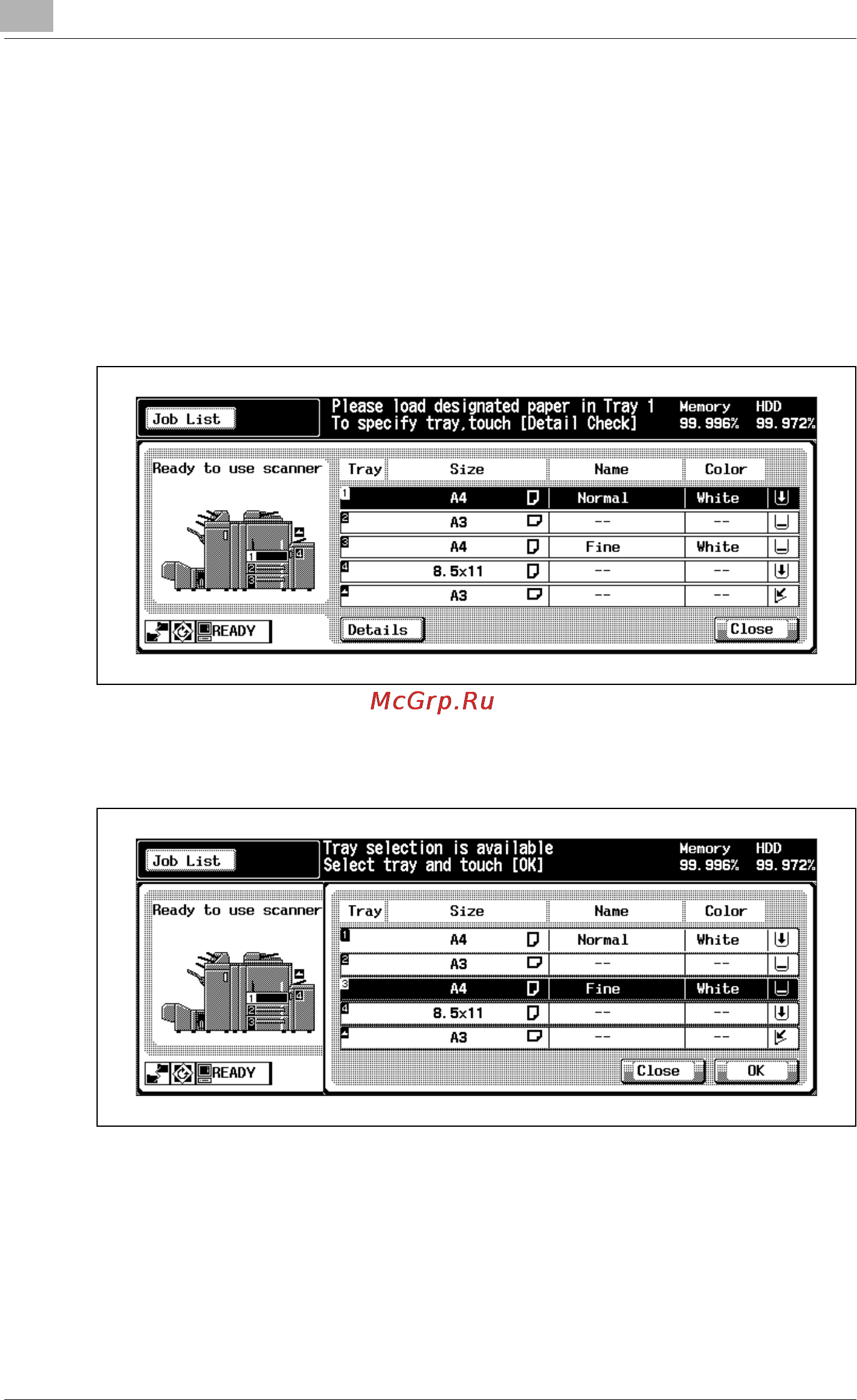

To change the tray selection

1 Touch [No Paper].

The Machine Status Screen will be displayed.

2 Touch [Details].

The tray selection will be available on the Machine Status Screen.

3 Touch the desired tray key, then touch [OK].

The Machine Status Screen will be restored.
