Controller Setting

16-20 bizhub PRO 920

16.5 04 Spool

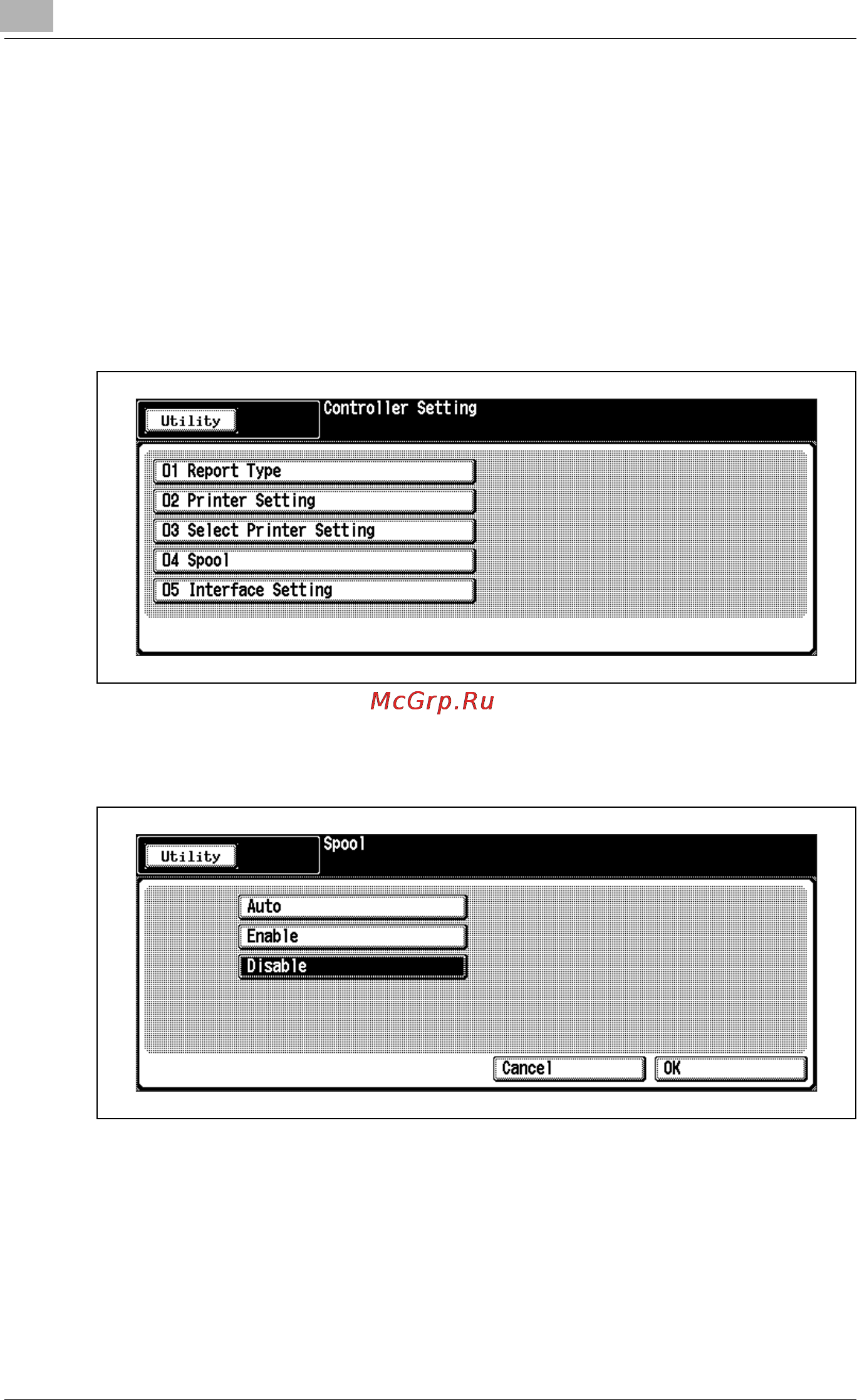

Select to enable, disable, or automatically perform the spool function.

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [Controller].

The Controller Setting Screen will be displayed.

3 Touch [04 Spool].

The Spool Selection Screen will be displayed.

4 Touch the desired key to select it.

5 Touch [OK] to complete the setting. The Controller Setting Screen will

be restored.

6 If further changes are required, touch the desired key.

Touch [Utility] to complete the setting and restore the Utility Screen.
