Konica Minolta bizhub PRO 920 [303/980] To set no rotate function

Applications

bizhub PRO 920 11-67

11.19 Copying without Image Rotation (No Rotate)

Rotation function allows you to utilize Auto Zoom or Auto Paper Select and

copy the original documents onto size A4 or B5, irrespective of the copy

paper feeding direction.

The machine is initially set to activate the Rotation function automatically.

Follow the procedure below to release/resume this function.

To set No Rotate function

0 If [Reset] on the control panel is pressed or Auto Reset functions,

Rotation function will be activated automatically.

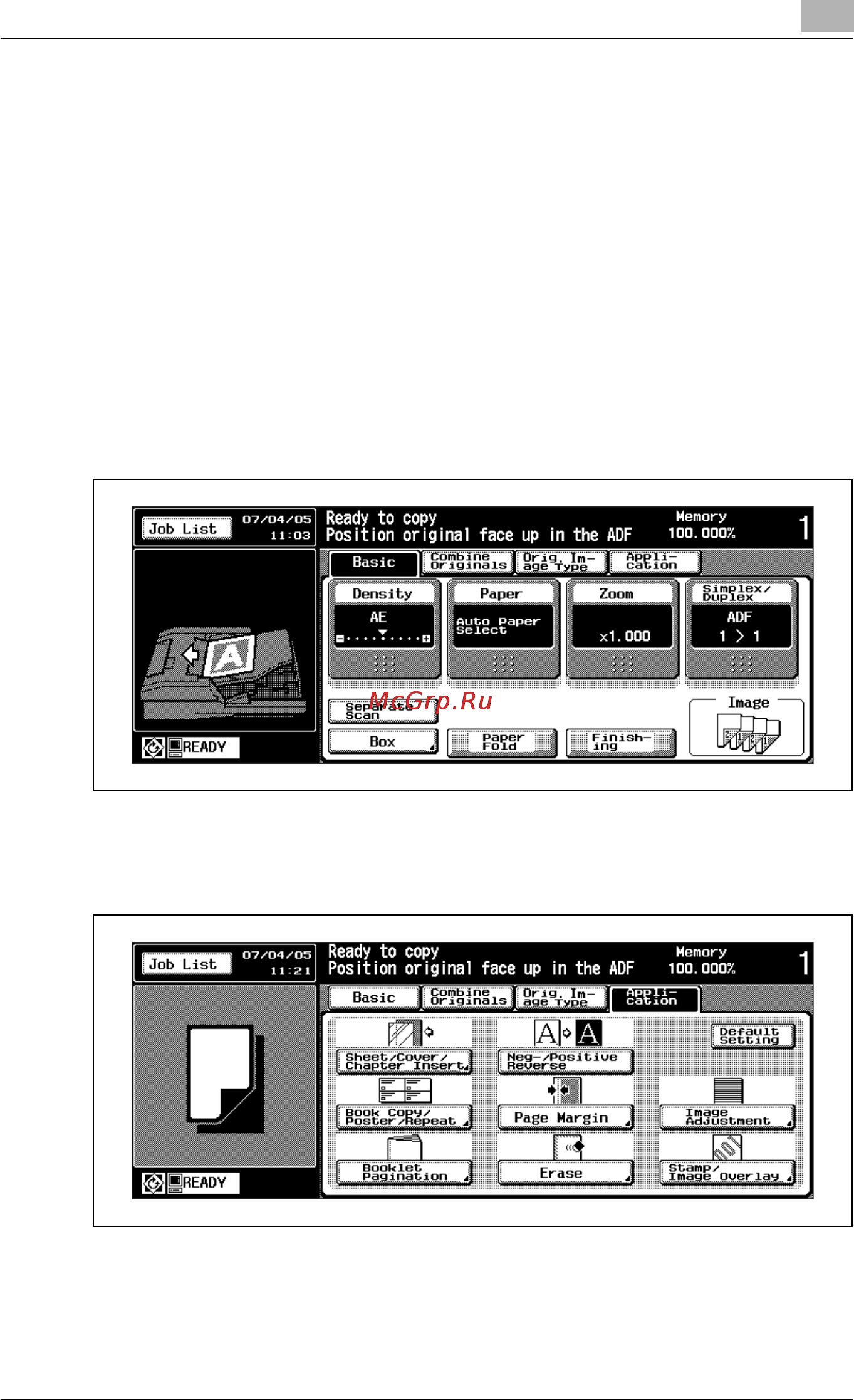

1 Touch [Application].

The Application Screen will be displayed.

2 Touch [Image Adjustment].

The Image Adjustment Screen will be displayed.
