Supplies & Handling
4
bizhub PRO 920 4-7
Loading Paper in Multi-Sheet Bypass Tray
The Multi-sheet bypass tray accepts special paper type or size that cannot
be loaded in the main body tray or in the large capacity unit.
0 Load OHP transparencies, thick paper or tracing paper one sheet at a
time, or stack regular paper up to 150 sheets (80 g/m
2
paper).

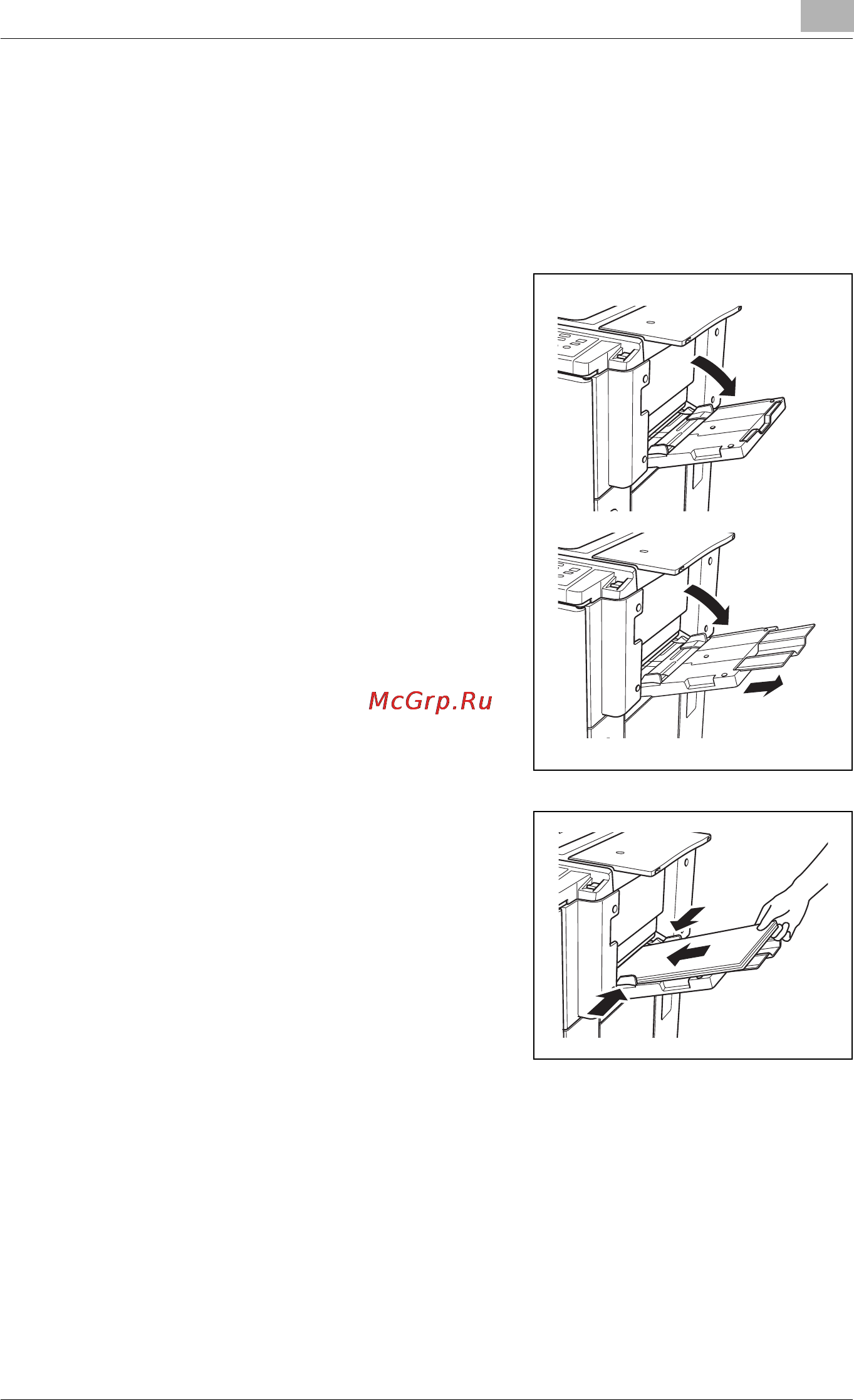

1 Open the Multi-sheet bypass tray.
– When loading large paper,
withdraw the right edge of the
Multi-sheet bypass tray to extend
it.
2 Load copy paper, and adjust the
paper guides to the paper size.
3 When copying is completed, close the Multi-sheet bypass tray.
!
Detail
The special paper type and size should be specified when loading it in the
Multi-sheet bypass tray. See "Copying Using Special Paper (Bypass Tray
Setting)" on page 9-16 for details.
