Utility <Administrator Setting>

bizhub PRO 920 18-165

2 IP NIC Setting>13 PSWC

Specify to use PageScope Web Connection (PSWC).

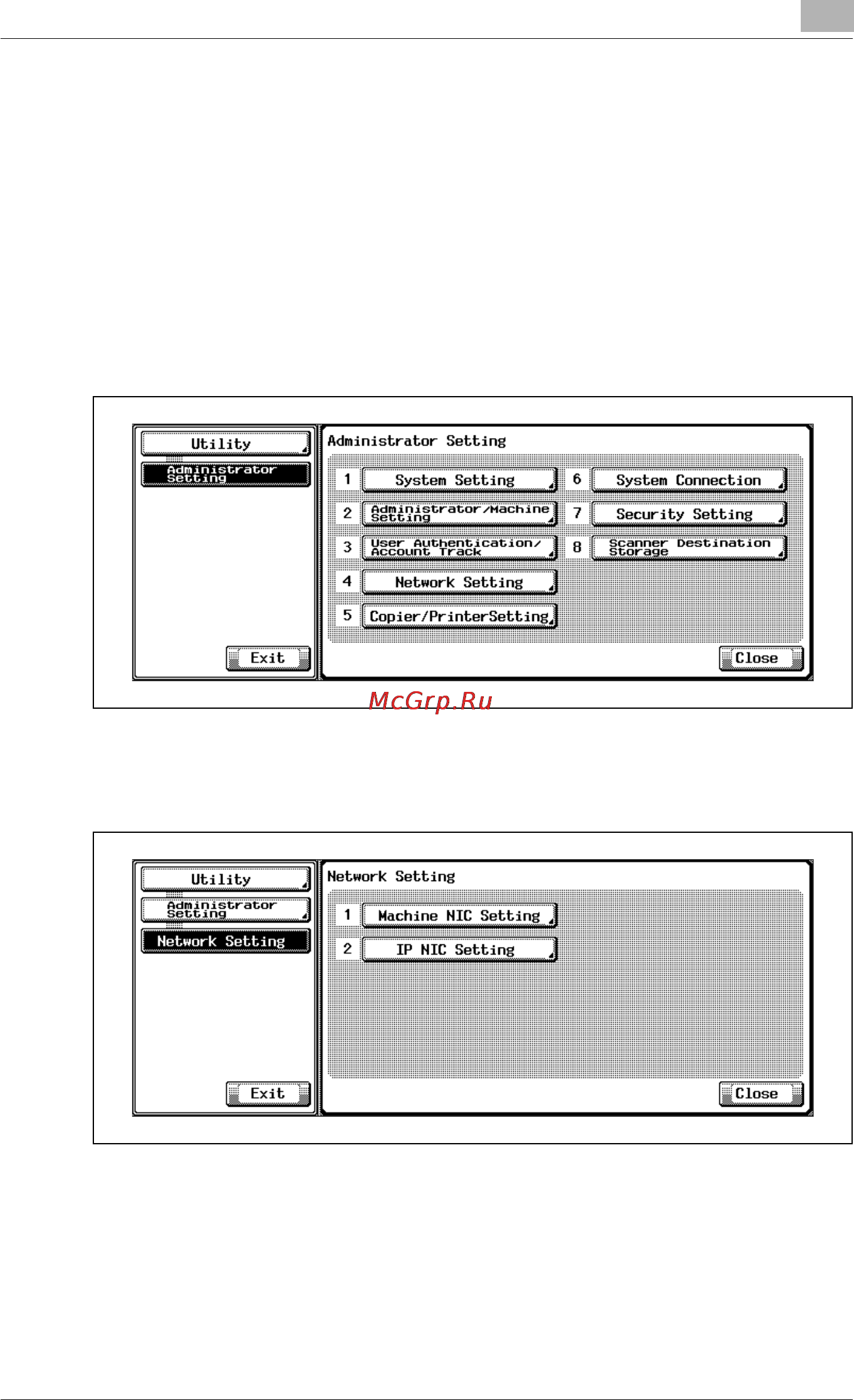

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [4 Network Setting].

The Network Setting Screen will be displayed.

4 Touch [2 IP NIC Setting].

The IP NIC Setting Screen will be displayed.
