Basic Job Settings
9
bizhub PRO 920 9-33
Making Double-Sided Copies Using Original Glass
Use the original glass to scan originals unsuitable for the document feeder.
0 Use the Separate Scan mode.
0 Position originals according to the original direction icon on the Basic
Screen.
0 If Book Copy, Non-Image Area Erase, Size Auto Detect mode of Image
Repeat, or Image Centring is selected, keep the ADF open throughout the
scanning procedure.
1 Specify the original set direction and binding direction.

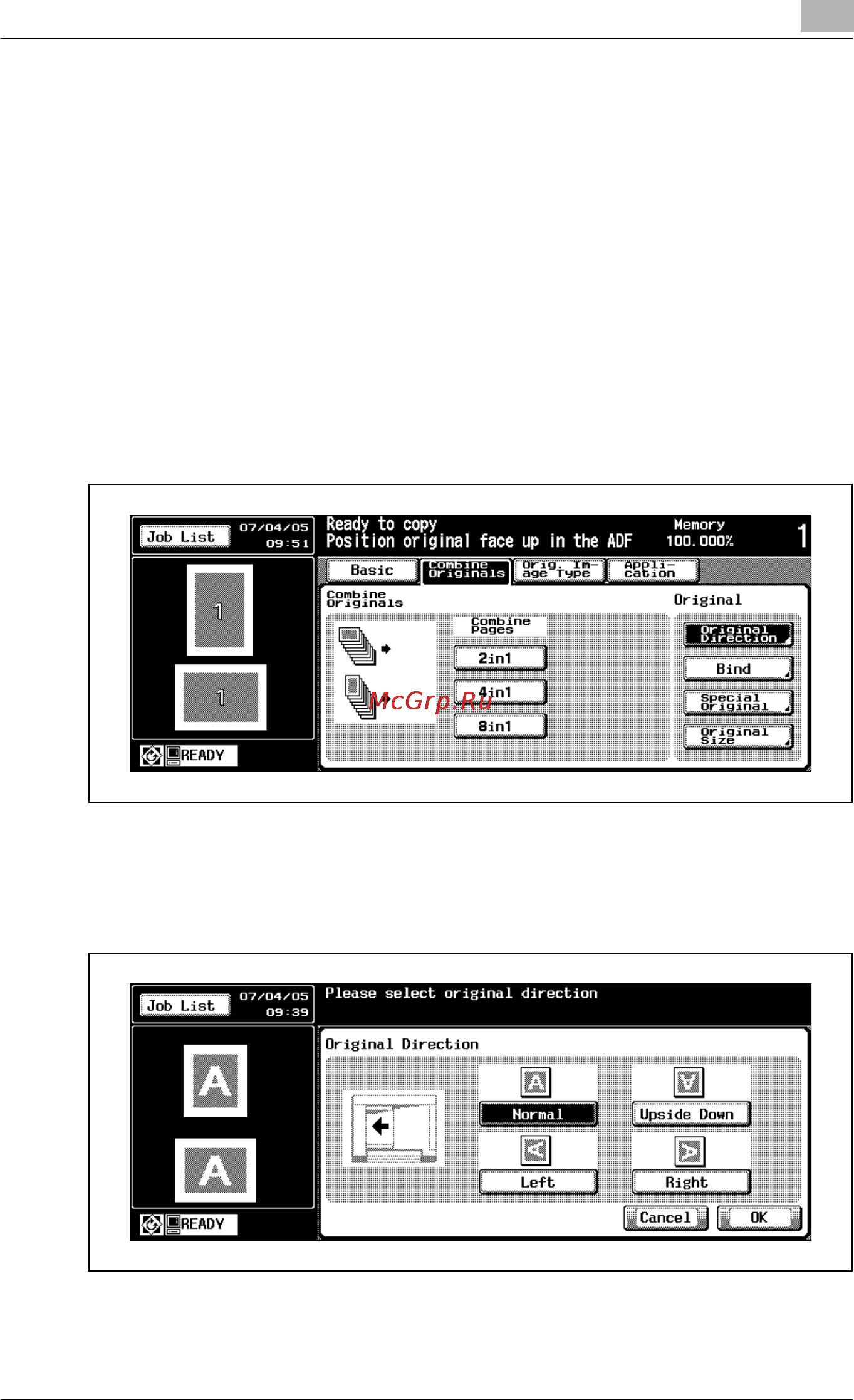

– Touch [Combine Originals] to display the Combine Originals setting
menu.
– Touch [Original Direction] to display the Original Direction Screen,
then touch the desired original direction key to highlight it. Touch
[OK] to return to the Combine Originals setting menu.
