12
Finishing / Paper Fold
12-28 bizhub PRO 920
12.9 Cover Sheet Feeding (Post Inserter)
The Finisher FS-509/FS-604 with Post inserter PI-501 installed can attach
cover sheets to output copies.
Using Insert Sheet function, cover sheets loaded in the upper and lower trays
of the post inserter will be attached as a front cover and/or back cover or
insertion sheet to output copies, and also using Staple mode, a covered and
stapled book can be made.
Or, using Cover with Blank Sheet mode of Booklet Pagination and Half Fold/
Fold&Staple with Trimming mode, a booklet-type cover will be attached to
the multiple page signature booklets.
To attach cover sheet to copies
0 Paper size: Upper tray A4, A4R, B5, B5R, A5, 8.5”×11”, 8.5”×11”R,
5.5”×8.5”
Lower tray A3, B4, A4, A4R, B5, B5R, A5, 11”×17”, 8.5”×14”, 8.5”×11”,
8.5”×11”R, 5.5”×8.5”
0 Upper/Lower tray capacity: 200 sheets (200 g/m
2
paper) or within 30 mm
thick each
0 Use ADF.
0 The cover paper size should be the same as copy paper size.
0 Cover paper loaded in the post inserter cannot be copied.

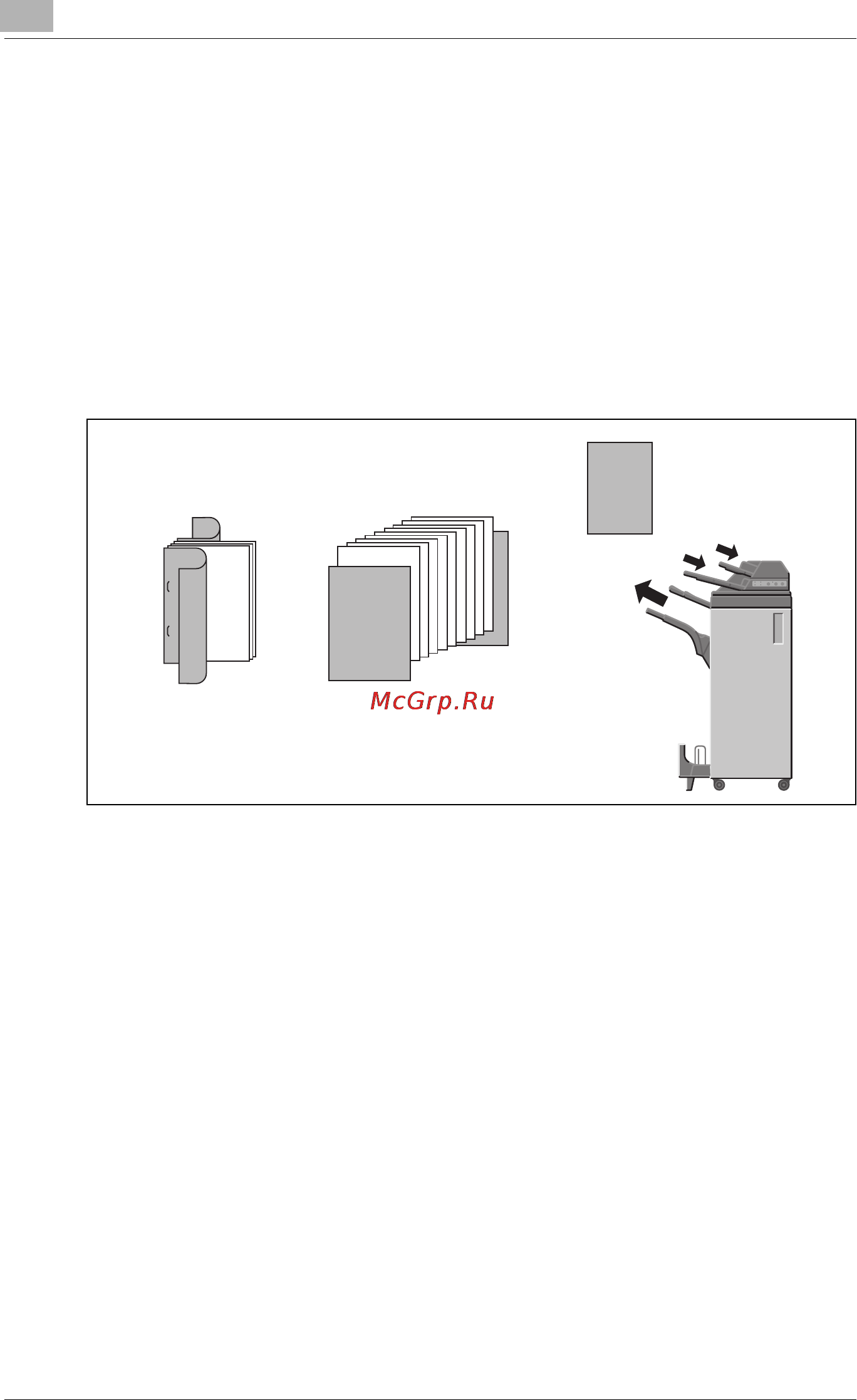

Cover sheet
Copied set with
cover attached
Copied set with
cover attached in
staple mode
