Konica Minolta bizhub PRO 920 [711/980] Auto image rotation

Utility <Administrator Setting>

bizhub PRO 920 18-187

Auto Image Rotation

Set this function to activate always, only when APS or AMS is activated, or

only when APS, AMS or reduce is activated.

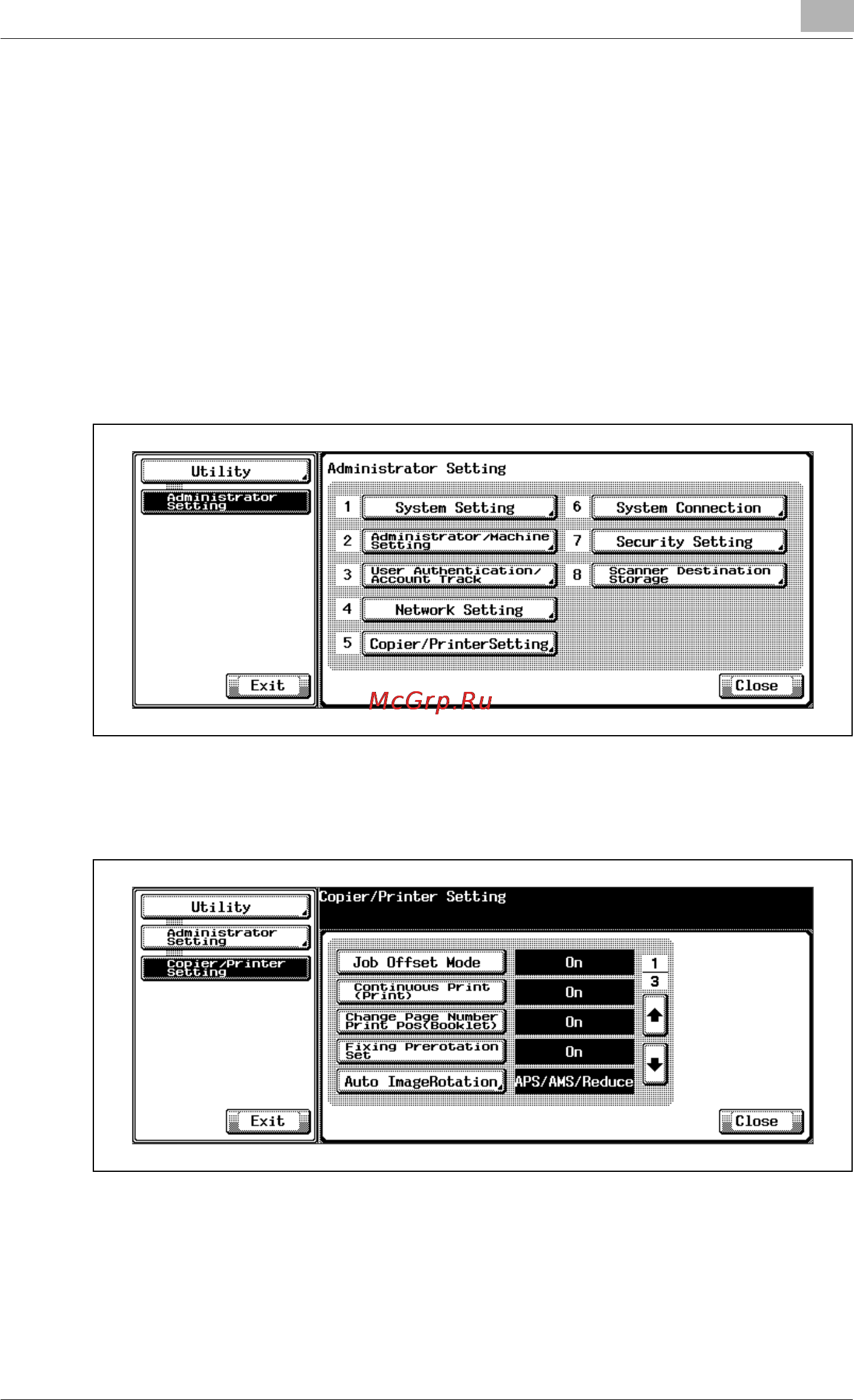

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [5 Copier/Printer Setting].

The Copier/Printer Setting Screen will be displayed.

4 Touch [Auto Image Rotation].

The select screen will be displayed.
