Konica Minolta bizhub PRO 920 [342/980] Setting output face and order

Finishing / Paper Fold

12-10 bizhub PRO 920

12.3 Setting Output Face and Order

This machine initially delivers printed sheets face down in the same page

order as originals (1 to N).

This section describes the function and setting procedure of the following

two modes.

- Face Up: Outputs printed side of simplex copies and odd numbered

duplex copies upward on the tray.

- N to 1: Outputs copies in reverse order of original pagination.

To set output face and order

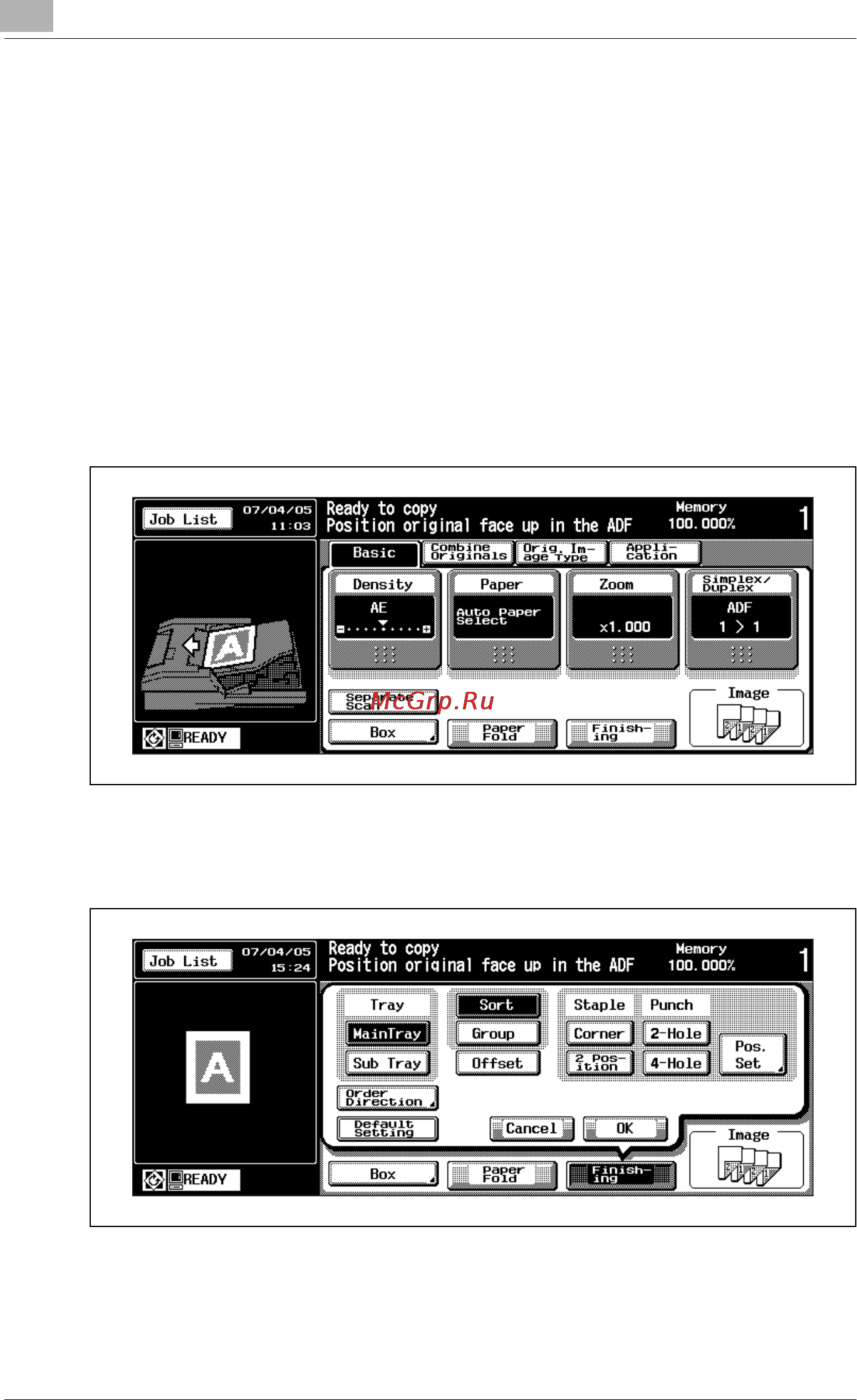

1 Touch [Finishing] on the Basic Screen.

The Finishing setting menu will be displayed.

2 Touch [Order Direction].

The popup menu for setting output styles will appear.
