Finishing / Paper Fold

bizhub PRO 920 12-9

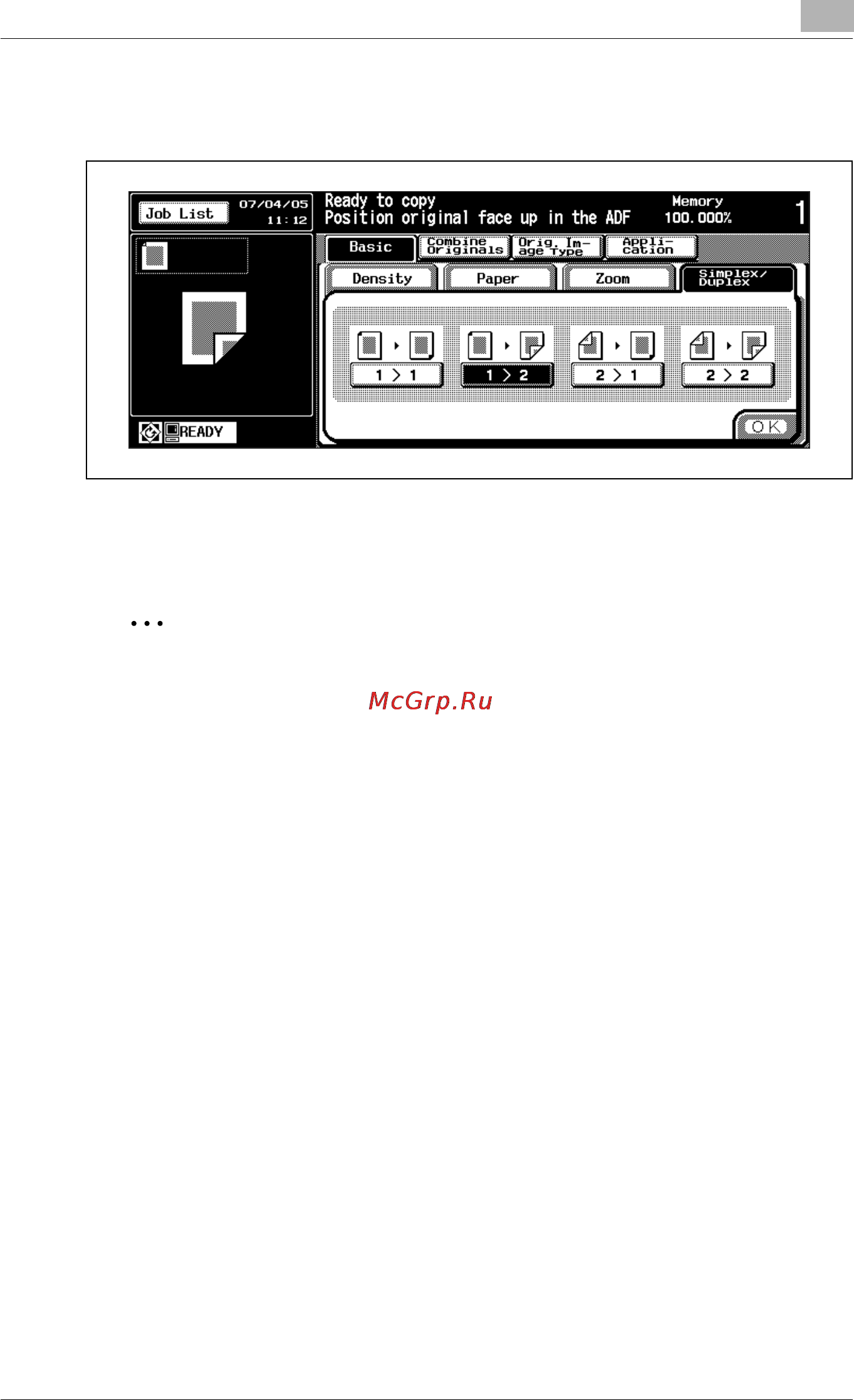

6 Touch [Simplex/Duplex] on the Basic Screen, then touch [1-2] or [2-2]

to highlight it.

7 Touch [OK].

The Basic Screen will be restored.

Note

If no other settings are required, you don’t have to touch [OK] to restore

the Basic Screen. Position originals, then press [Start] to start the printing

job.
