Finishing / Paper Fold

12-8 bizhub PRO 920

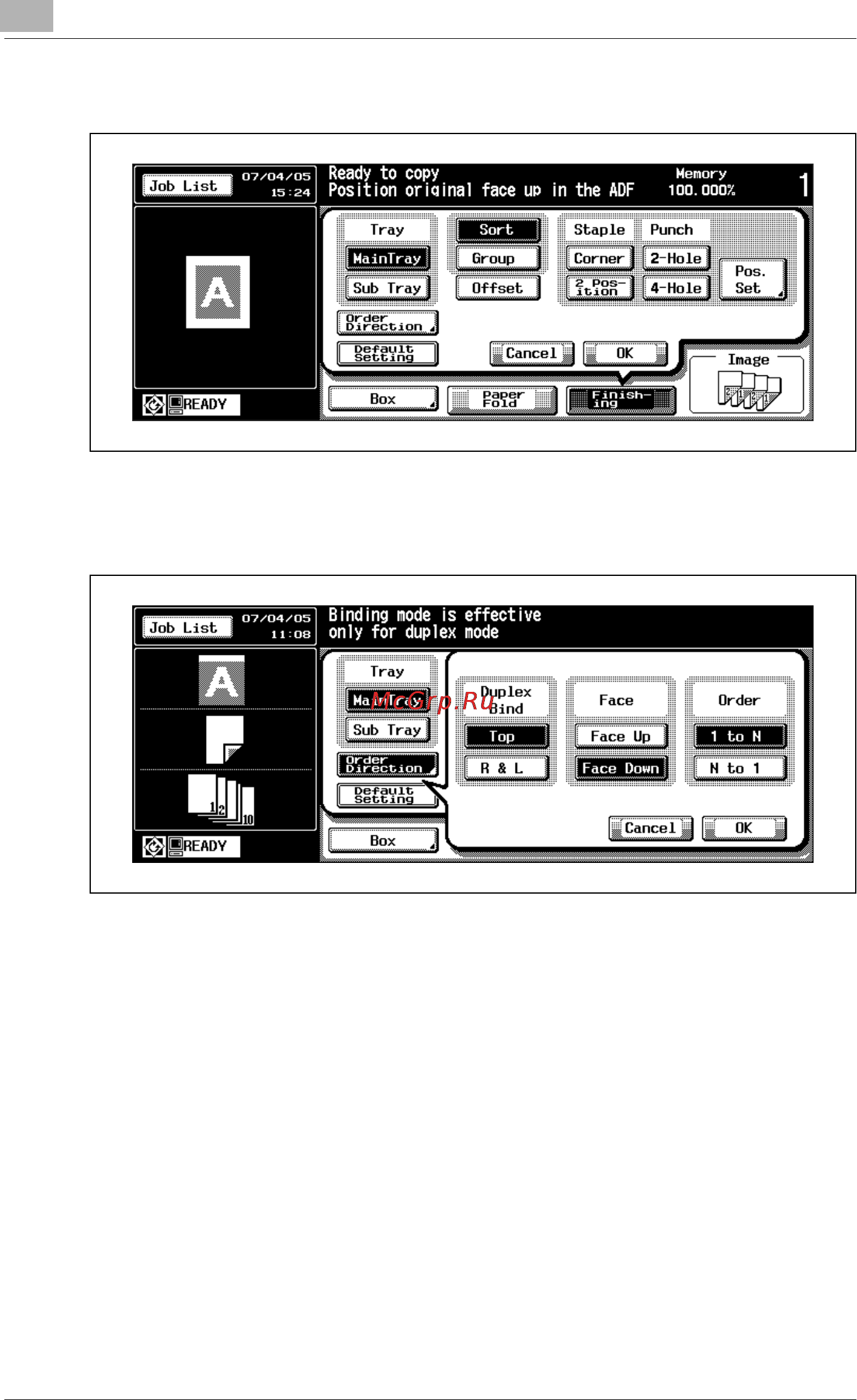

2 Touch [Order Direction].

The popup menu for setting output styles will appear.

3 Touch [Top] to highlight it.

4 Touch [OK].

5 Touch [OK] on the Finishing setting menu.
