Konica Minolta bizhub PRO 920 [569/980] Expert adjustment adf frame erasure setting

Utility <Administrator Setting>

bizhub PRO 920 18-45

6 Expert Adjustment>ADF Frame Erasure Setting

Set Frame Erasure to function anytime when copying in ADF mode, and set

the amount of the outside area to be deleted.

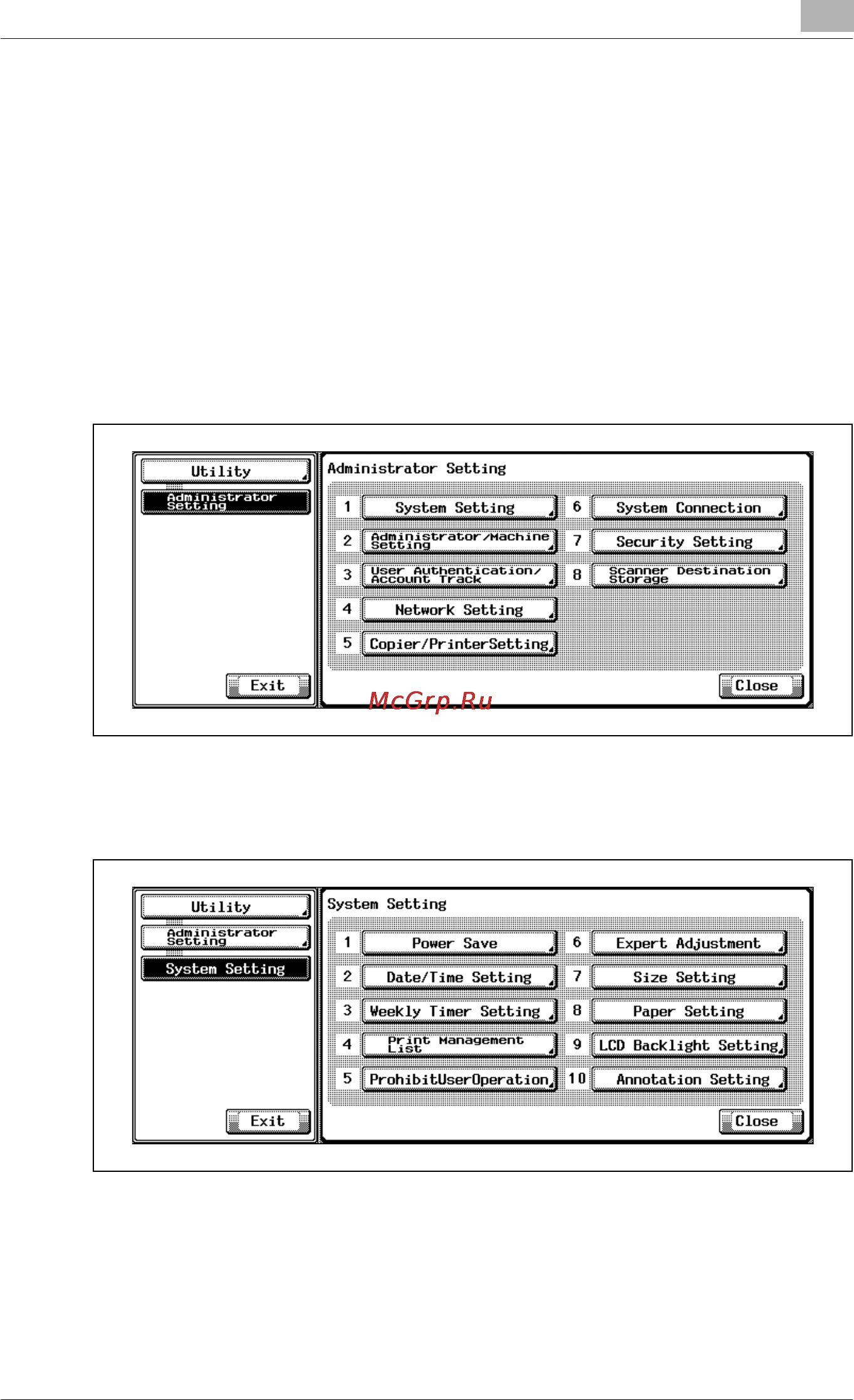

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [1 System Setting].

The System Setting Screen will be displayed.

4 Touch [6 Expert Adjustment].

The Expert Adjustment Screen will be displayed.
