Utility <Administrator Setting>

18-46 bizhub PRO 920

5 Touch [ADF Frame Erasure Setting].

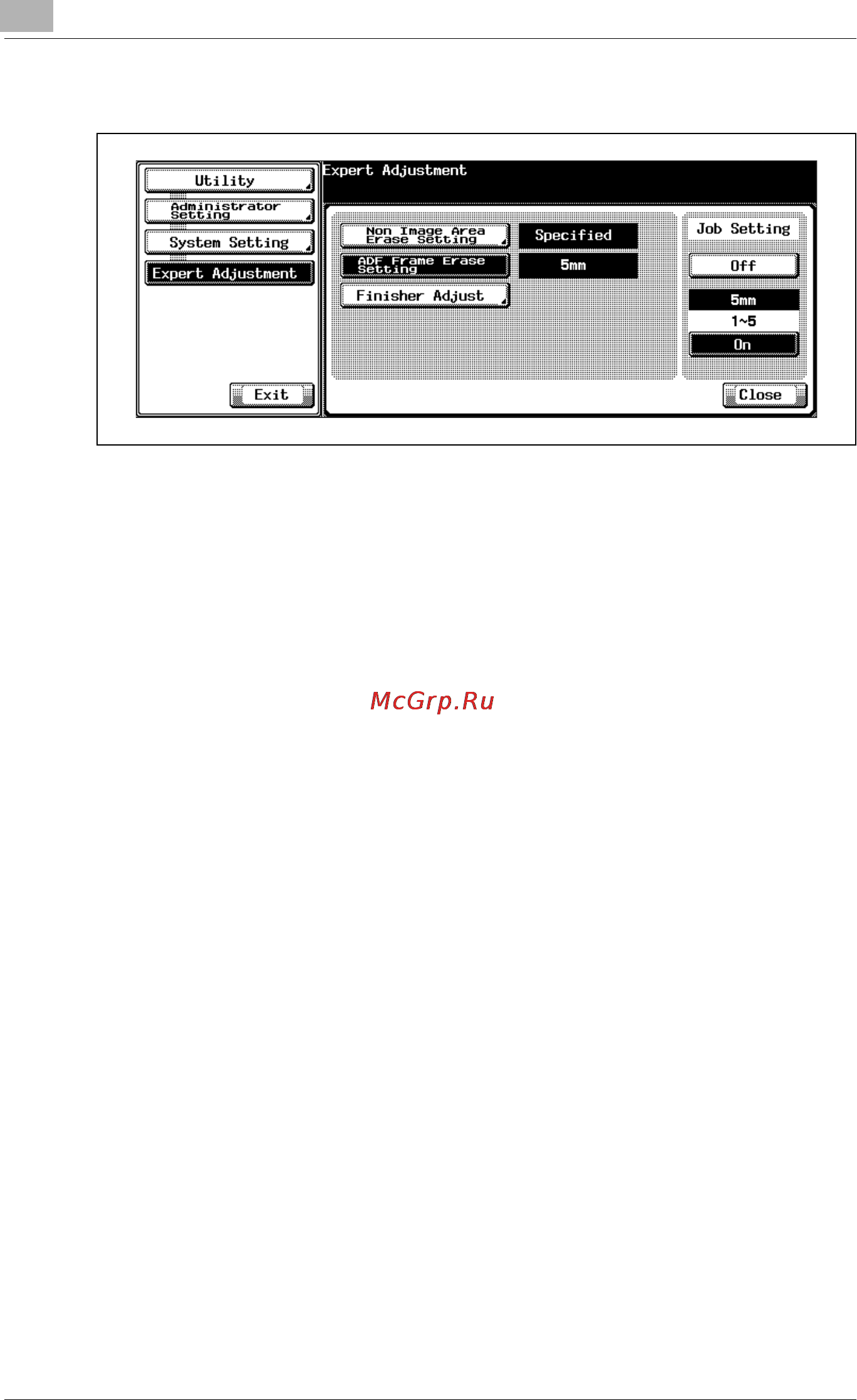

The Job Setting Screen of the ADF Frame Erasure Setting is displayed

on the rightside.

6 Touch [On] if setting the outside area. Enter the desired amount of

outside area to be deleted. The amount of outside area to be set is

between 1 to 5mm; entering a value above 6 mm is invalid.

Touch [Off] if deleting the outside area is not necessary.

The setting is enabled when it is set.

7 Touch [OK] to return to the Expert Adjustment Screen.

8 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
